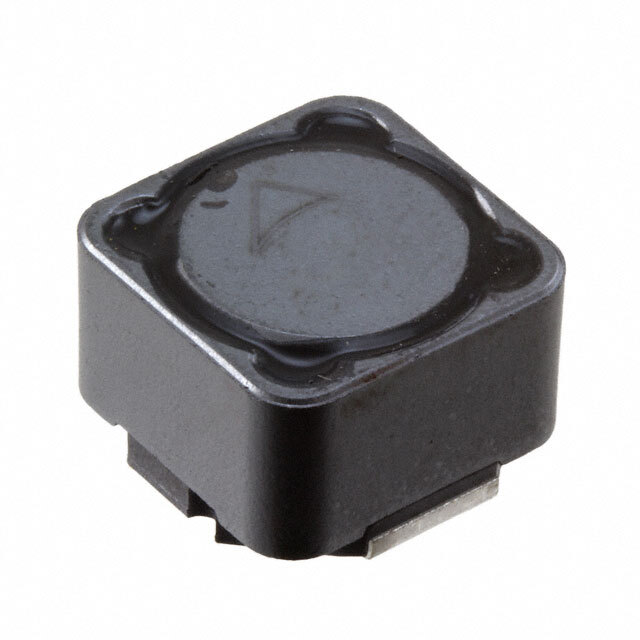

Same model may have multiple batches, images only for reference.
B82471A1223M000 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B82471A1223M000

Part No B82471A1223M000
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 22UH 1.11A 180MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Last Time Buy
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 1.11 A
Current - Saturation (Isat) 1.2A
Shielding Unshielded
DC Resistance (DCR) 180mOhm Max
Temperature Range - Operating -55°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Case / Package Nonstandard
Size / Dimension 0.240" L x 0.220" W (6.10mm x 5.60mm)
Height - Seated (Max) 0.193\
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1531724-B82471A1223M000
Ultra Librarian 3D Model Ultra Librarian B82471A1223M000 CAD Model
