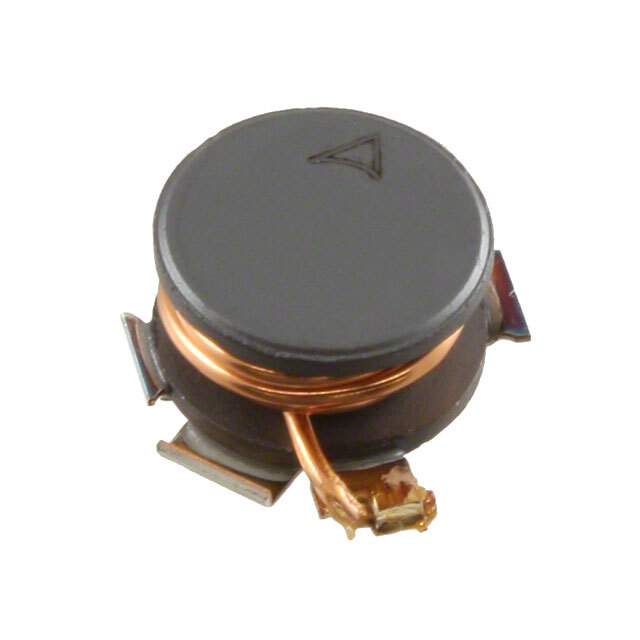

Same model may have multiple batches, images only for reference.

B82464A4153K000

Name: B82464A4153K000
Brand: EPCOS (TDK)
SKU: 1315183
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	B82464A4153K000
Manufacturer	EPCOS (TDK)
Catalog	Fixed Inductors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	EPCOS - TDK Electronics
Series	B82464A4
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	15 µH
Tolerance	±10%
Current Rating (Amps)	2.5 A
Current - Saturation (Isat)	3.2A
Shielding	Unshielded
DC Resistance (DCR)	46mOhm Max
Frequency - Self Resonant	100kHz
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.409" L x 0.409" W (10.40mm x 10.40mm)
Height - Seated (Max)	0.189" (4.80mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1315183-B82464A4153K000
Ultra Librarian 3D Model	Ultra Librarian B82464A4153K000 CAD Model

Alternative Products

Description

The B82464A4153K000 is a fixed inductor with a drum core and wirewound type.

Shielding: unshielded
Inductance: 15μH
Tolerance: ±10%
Height when Seated: 0.189" (4.80mm)
AEC-Q200 Rated: Yes
Material: Ferrite
DC Resistance (DCR): 46mOhm Max
Current Rating: 2.5A
Inductance Frequency: 100kHz
Temperature Range: -55°C to 150°C
Dimensions: 0.409" L x 0.409" W (10.40mm x 10.40mm)
Package/Case: nonstandard.
