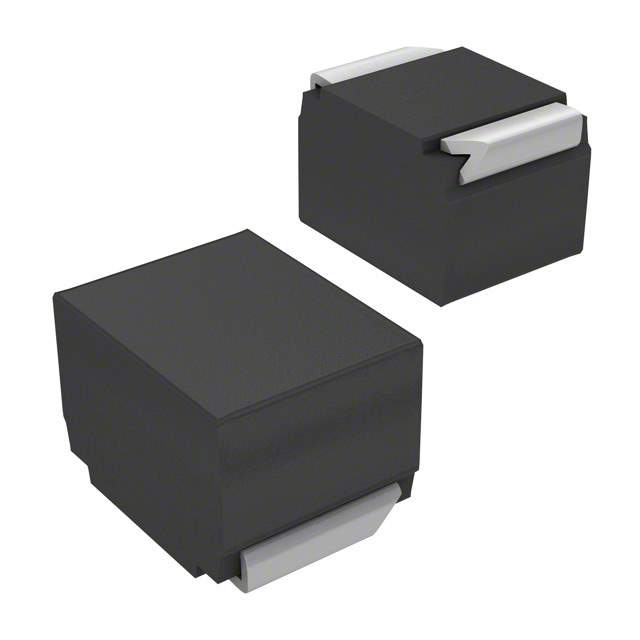

B82422T3220K000 Real Image
Same model may have multiple batches, images only for reference.

B82422T3220K000

Part No B82422T3220K000
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr EPCOS - TDK Electronics
Series SIMID
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ceramic
Inductance 22 nH
Tolerance ±10%
Current Rating (Amps) 450 mA
Shielding Unshielded
DC Resistance (DCR) 160mOhm Max
Q @ Freq 23 @ 100MHz
Frequency - Self Resonant 2GHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 MHz
Mounting SMD (SMT)
Package / Case 2-SMD, J-Lead
Supplier Device Package 1210 (3225 Metric)
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.083" (2.10mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1314723-B82422T3220K000
Ultra Librarian 3D Model Ultra Librarian B82422T3220K000 CAD Model

Description

The EPCOS (TDK) 1314723-B82422T3220K000 is a wirewound drum core inductor that offers an inductance of 22 nH and a tolerance of ±10%.

  • Inductance: 22 nH
  • Tolerance: ±10%
  • DC Resistance (DCR): 160mOhm max
  • Operating Temperature: -55 to 125 °C
  • RoHS Compliant: Yes
  • Packaging: Tape and reel (TR) or cut tape (CT)
  • Applications: Power supplies, DC-DC converters, and filtering applications
