B82144F2222K000 EPCOS (TDK) – Price, Stock & Datasheet

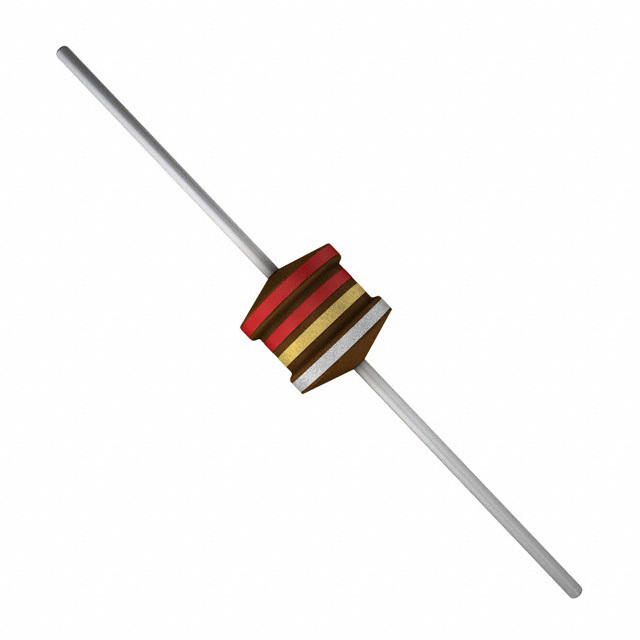

Same model may have multiple batches, images only for reference.

B82144F2222K000

Part No B82144F2222K000
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description 2.2 µH Unshielded Drum Core, Wirewound Inductor 3.65 A 55mOhm Max Axial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr EPCOS - TDK Electronics
Series LBC
Packaging Tape & Reel (TR)Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.2 µH
Tolerance ±10%
Current Rating (Amps) 3.65 A
Current - Saturation (Isat) 6A
Shielding Unshielded
DC Resistance (DCR) 55mOhm Max
Q @ Freq 60 @ 2.52MHz
Frequency - Self Resonant 140MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Type Through Hole
Package / Case Axial
Size / Dimension 0.256" Dia x 0.362" L (6.50mm x 9.20mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1488812-B82144F2222K000
Ultra Librarian 3D Model Ultra Librarian B82144F2222K000 CAD Model
