B82144B2153K000 EPCOS (TDK) – Price, Stock & Datasheet

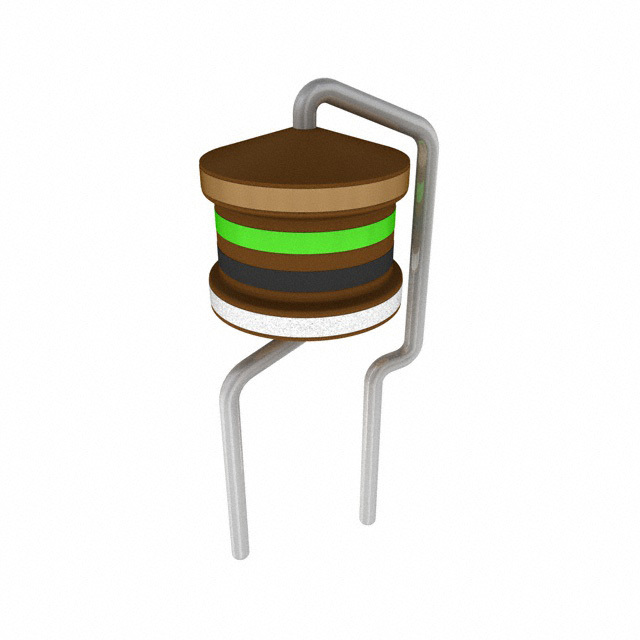

Same model may have multiple batches, images only for reference.

B82144B2153K000

Part No B82144B2153K000
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description 15 µH Unshielded Drum Core, Wirewound Inductor 2.3 A 140mOhm Max Radial, Vertical Cylinder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr EPCOS - TDK Electronics
Series LBC
Packaging Tape & Reel (TR)Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 µH
Tolerance ±10%
Current Rating (Amps) 2.3 A
Current - Saturation (Isat) 2.4A
Shielding Unshielded
DC Resistance (DCR) 140mOhm Max
Q @ Freq 50 @ 252kHz
Frequency - Self Resonant 13MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Size / Dimension 0.256" Dia (6.50mm)
Height - Seated (Max) 0.551" (14.00mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1488762-B82144B2153K000
Ultra Librarian 3D Model Ultra Librarian B82144B2153K000 CAD Model
