Same model may have multiple batches, images only for reference.

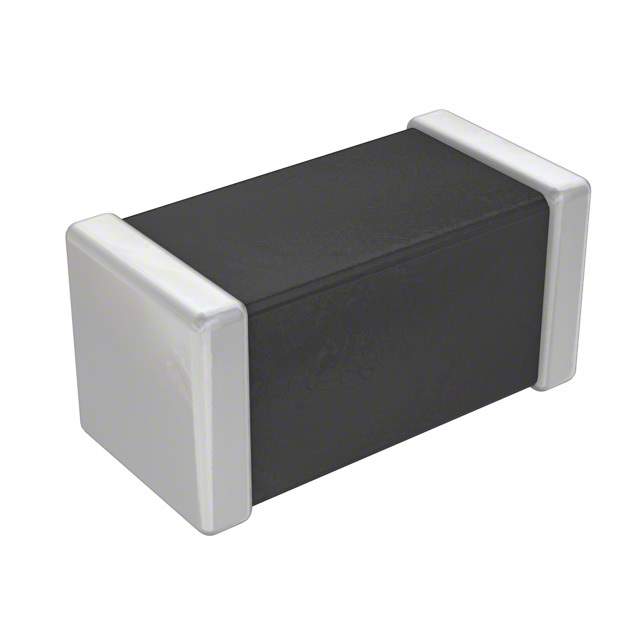

B72500E5200S160 Real Image
Same model may have multiple batches, images only for reference.

B72500E5200S160

Part No B72500E5200S160
Manufacturer EPCOS (TDK)
Catalog TVS - Varistors, MOVs
Description VARISTOR 36V 30A 0603 / 36 V 30 A Varistor 1 Circuit Surface Mount, MLCV 0603 (1608 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Mfr EPCOS - TDK Electronics
Series Automotive, AEC-Q200, E
Package Tape & Reel
Maximum AC Volts 20 V
Maximum DC Volts 26 V
Varistor Voltage (Min) 28.8 V
Varistor Voltage (Typ) 36 V
Varistor Voltage (Max) 43.2 V
Current - Surge 30 A
Energy 0.3J
Number of Circuits 1
Capacitance @ Frequency 96 pF @ 1 MHz
Temperature Range - Operating -55°C ~ 150°C (TA)
Mounting Type Surface Mount, MLCV
Package / Case 0603 (1608 Metric)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Other Names 495-4600-6,CT0603S20ACCG,495-4600-1,495-4600-2
Standard Package 4,000
Win Source Part Number 967915-B72500E5200S160
Ultra Librarian 3D Model Ultra Librarian B72500E5200S160 CAD Model

Description

The B72500E5200S160 is a TVS varistor.

  • Capacitance: 96 pF @ 1 MHz
  • Varistor Voltage: 28.8V (min), 36V (typ), 43.2V (max)
  • Current Surge: 30A
  • Energy: 0.3J
  • Maximum AC Voltage: 20V
  • Maximum DC Voltage: 26V
  • Package: 0603 (1608 metric)
  • Operating Temperature: -55°C to 150°C
