Same model may have multiple batches, images only for reference.

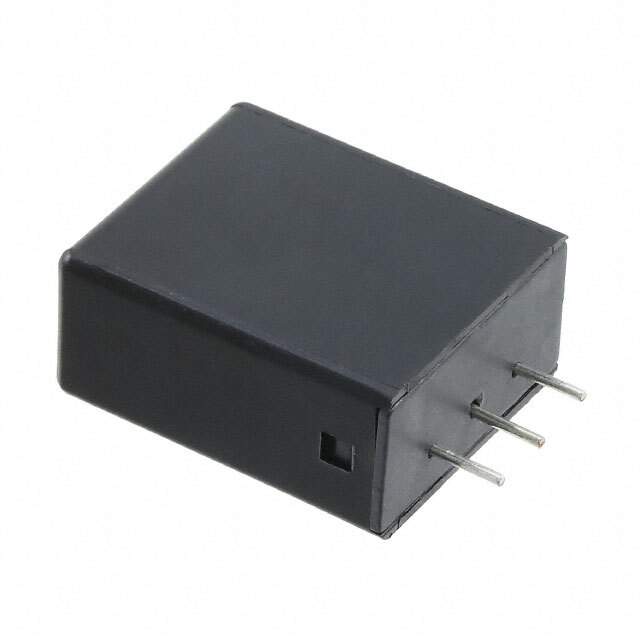

B72225T4321K101 Real Image
Same model may have multiple batches, images only for reference.

B72225T4321K101

Part No B72225T4321K101
Manufacturer EPCOS (TDK)
Catalog TVS - Varistors, MOVs
Description VARISTOR 510V 20KA RADIAL BOX / 510 V 20 kA Varistor 1 Circuit Through Hole Radial, Box - 3 Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Varistors, MOVs
Mfr EPCOS - TDK Electronics
Series AdvanceD Thermofuse
Package Tray
Product Status Not For New Designs
Maximum AC Volts 320 V
Maximum DC Volts 420 V
Varistor Voltage (Min) 459 V
Varistor Voltage (Typ) 510 V
Varistor Voltage (Max) 561 V
Current - Surge 20 kA
Energy 445J
Number of Circuits 1
Capacitance @ Frequency 750 pF @ 1 kHz
Temperature Range - Operating -40°C ~ 85°C (TA)
Features Thermally Protected
Mounting Type Through Hole
Package / Case Radial, Box - 3 Lead
Base Product Number B72225T
Standard Package 250
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 1339474-B72225T4321K101
Ultra Librarian 3D Model Ultra Librarian B72225T4321K101 CAD Model

Description

The EPCOS - TDK Electronics B72225T4321K101 is a transient voltage suppressor that is thermally protected.

  • Capacitance: 750 pF @ 1 kHz
  • Varistor Voltage: 459 V - 561 V
  • Maximum AC Volts: 320 V
  • Maximum DC Volts: 420 V
  • Surge Current: 20 kA
  • Mounting Type: Through Hole
  • Package: Radial, Box - 3 Lead
  • Operating Temperature: -40°C ~ 85°C (TA)
  • REACH: Unaffected
  • RoHS3: Compliant
