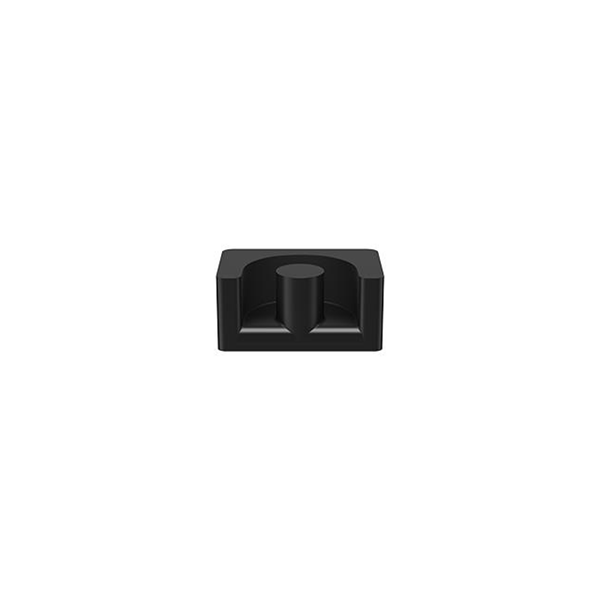

B65855A0000Y038 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B65855A0000Y038

Part No B65855A0000Y038
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description Uncoated T38 Ferrite Core EP Type 0.242" (6.15mm) Length 0.154" (3.90mm) Width Diameter 0.112" (2.85mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series EP5
Packaging Box
Core Type EP
Supplier Device Package EP 5
Material T38
Inductance Factor (Al) 2 µH
Tolerance -30%, +40%
Gap Ungapped
Effective Permeability (µe) 5000.0
Initial Permeability (µi) 2300
Core Factor (ΣI/A) mm⁻¹ 3.14
Effective Length (le) mm 9.73
Effective Area (Ae) mm2 3.09
Minimum Core Cross Section (Amin) mm2 2.3
Effective Magnetic Volume (Ve) mm3 30.0
Finish Uncoated
Height 0.112" (2.85mm)
Length 0.242" (6.15mm)
Width 0.154" (3.90mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.9630
Win Source Part Number 1490249-B65855A0000Y038
Ultra Librarian 3D Model Ultra Librarian B65855A0000Y038 CAD Model
