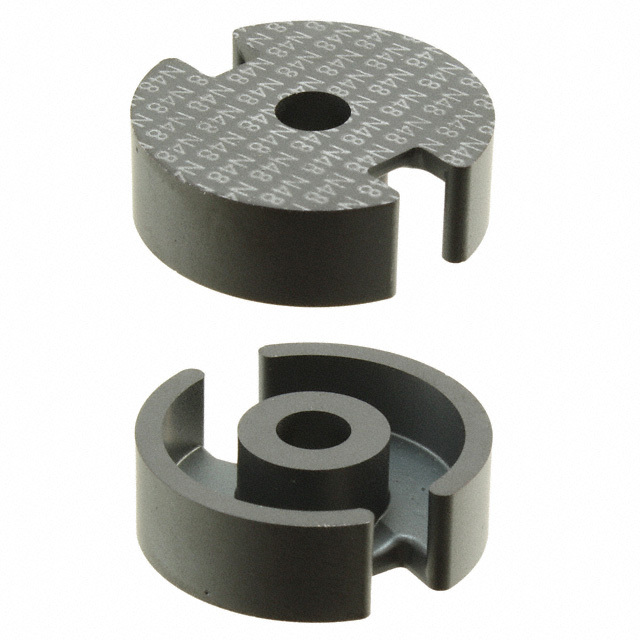

Same model may have multiple batches, images only for reference.
B65661D0000R033 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B65661D0000R033

Part No B65661D0000R033
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description Uncoated M33 Ferrite Core Type Length Width 0.866" (22.00mm) Diameter 0.268" (6.80mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series P22/13
Packaging Box
Supplier Device Package P 22 x 13
Material M33
Diameter 0.866" (22.00mm)
Inductance Factor (Al) 1.6 µH
Tolerance -20%, +30%
Gap Ungapped
Effective Permeability (µe) 640.0
Initial Permeability (µi) 750
Core Factor (ΣI/A) mm⁻¹ 0.5
Effective Length (le) mm 31.6
Effective Area (Ae) mm2 63.0
Effective Magnetic Volume (Ve) mm3 1990.0
Finish Uncoated
Height 0.268" (6.80mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.9630
Win Source Part Number 1489710-B65661D0000R033
Ultra Librarian 3D Model Ultra Librarian B65661D0000R033 CAD Model
