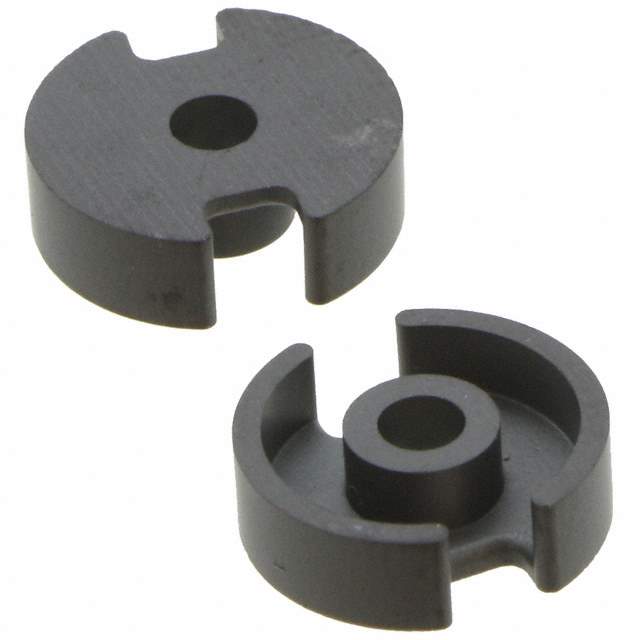

B65517D0250J048

Part No B65517D0250J048
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description FERRITE CORE P 250NH N48 2PCS
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Magnetics - Transformer, Inductor Components
Manufacturer EPCOS (TDK)
Status Active
Core Type P
Inductance Factor (Al) 250nH
Tolerance ±5%
Gap Gapped
Effective Permeability (μe) 249
Material N48
Core Factor (ΣI/A) mm-1 1.25
Effective Length (le) mm 12.5
Effective Area (Ae) mm2 10
Effective Magnetic Volume (Ve) mm3 125
Finish Uncoated
Case / Package P 9 x 5
Height 2.70mm
Diameter 9.30mm
Win Source Part Number 200006-B65517D0250J048
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B65517D0250J048 CAD Model

Description

Description

The B65517D0250J048 is known for its robust structure and adaptability in various electronic circuits. It offers excellent performance, ensuring high reliability and efficiency.

Features and Benefits

  • Reliable performance under varying environmental conditions.
  • Exceptional electrical characteristics suitable for high-frequency applications.
  • Easy to integrate into existing systems due to its standard design.

Applications

  • Telecommunications equipment
  • Data processing systems
  • Consumer electronics

This product delivers unmatched versatility and performance, making it a preferred choice for complex and demanding electronics projects.
