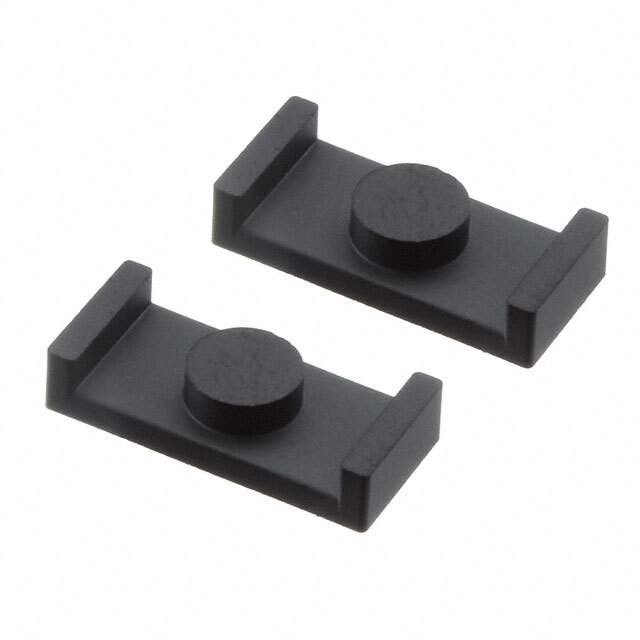

B65513J0000R087 Real Image
Same model may have multiple batches, images only for reference.

B65513J0000R087

Part No B65513J0000R087
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description FERRITE CORE ER 1.5UH N87 2PCS
Datasheet
B65513J0000R087 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Magnetics - Transformer, Inductor Components
Manufacturer EPCOS (TDK)
Status Active
Core Type ER
Inductance Factor (Al) 1.5μH
Tolerance -20%, +30%
Gap Ungapped
Effective Permeability (μe) 1250
Initial Permeability (μi) 2200
Material N87
Core Factor (ΣI/A) mm-1 1.1
Effective Length (le) mm 19
Effective Area (Ae) mm2 17.6
Effective Magnetic Volume (Ve) mm3 333
Finish Uncoated
Case / Package ER 14.5 x 6
Height 2.95mm
Length 14.50mm
Width 6.70mm
Win Source Part Number 048921-B65513J0000R087
Popularity Medium
Supply and Demand Status Balance
Quantity per package 920
Ultra Librarian 3D Model Ultra Librarian B65513J0000R087 CAD Model

Description

Description

The B65513J0000R087 is a versatile electronic component designed with precision and reliability in mind. It is an ideal choice for a broad range of electronic projects due to its exceptional performance characteristics.

Features and Benefits

  • High-quality construction ensuring durability and long lifespan.
  • Designed to support a wide frequency range for various applications.
  • Compact size, making it suitable for use in space-constrained projects.

Applications

  • Power supply units
  • Signal processing circuits
  • Industrial automation systems

This component is widely recognized for its efficiency and effectiveness in enhancing electronic circuit functionality, providing seamless integration with a myriad of electronic projects.
