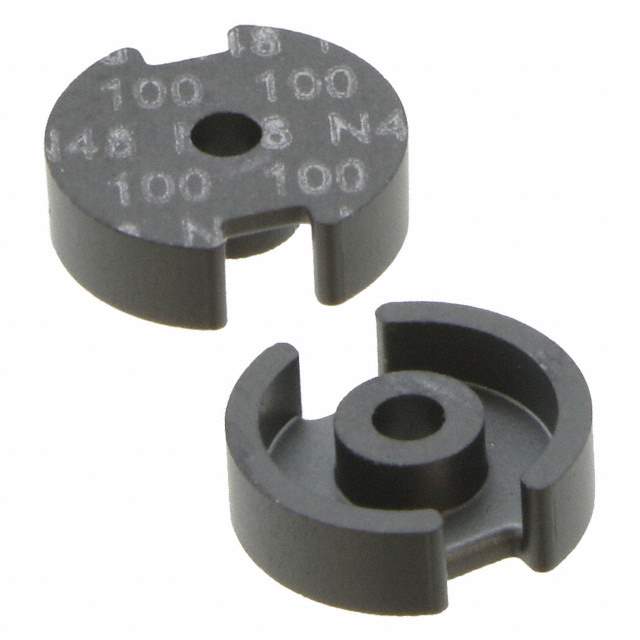

B65511A0100A048 Real Image
Same model may have multiple batches, images only for reference.

B65511A0100A048

Part No B65511A0100A048
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description FERRITE CORE P 100NH N48 2PCS
Datasheet
B65511A0100A048 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Magnetics - Transformer, Inductor Components
Manufacturer EPCOS (TDK)
Status Active
Core Type P
Inductance Factor (Al) 100nH
Tolerance ±3%
Gap Gapped
Effective Permeability (μe) 114
Material N48
Core Factor (ΣI/A) mm-1 1.43
Effective Length (le) mm 10
Effective Area (Ae) mm2 7
Effective Magnetic Volume (Ve) mm3 70
Finish Uncoated
Case / Package P 7 x 4
Height 2.10mm
Diameter 7.35mm
Win Source Part Number 200005-B65511A0100A048
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian B65511A0100A048 CAD Model

Description

B65511A0100A048 Ferrite Core

The B65511A0100A048 ferrite core is known for its superior efficiency in electronic circuitry. It is tailored for compact and intricate electronic designs that require optimal electromagnetic parameter control.

  • Applications:
    • DC-DC converters
    • Transformers
    • Inductive components
    • Power distribution units
  • Features and Benefits:
    • Exceptional magnetic properties
    • Robust construction for lasting use
    • Minimized power loss
    • Eco-friendly material usage

Additional Details: Ideally suited for use in modern electronic devices that prioritize energy efficiency and environmental sustainability.
