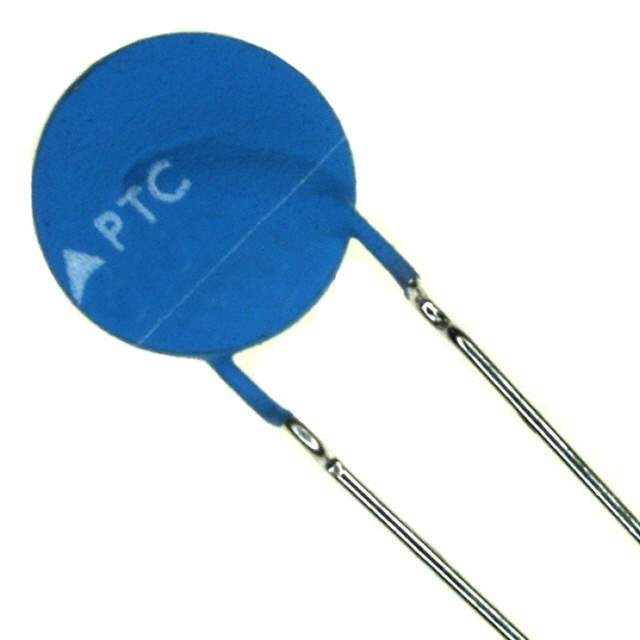

B59965C0120A070 Real Image
Same model may have multiple batches, images only for reference.

B59965C0120A070

Part No B59965C0120A070
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 30V 600MA RADIAL  /  Ceramic PTC Resettable Fuse 30V 600 mA Ih Through Hole Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr EPCOS - TDK Electronics
Series Automotive, AEC-Q200
Package Bulk
Type Ceramic
Voltage - Max 30V
Current - Max 4.3 A
Current - Hold (Ih) (Max) 600 mA
Current - Trip (It) 1.2 A
Resistance - 25°C (Typ) 1.2 Ohms
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.433" Dia x 0.138" T (11.00mm x 3.50mm)
Height - Seated (Max) 0.571" (14.50mm)
Lead Spacing 0.197" (5.00mm)
Approval Agency UR
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Names 495-3899,B59965C120A70,B59965C 120A 70,B59965C0120A070-ND,B59965C120A70-ND
Standard Package 500
Win Source Part Number 1182600-B59965C0120A070
Ultra Librarian 3D Model Ultra Librarian B59965C0120A070 CAD Model

Description

The EPCOS - TDK Electronics B59965C0120A070 is a PTC resettable fuse with a maximum voltage of 30V and a maximum current of 4.3A.

  • Type: PTC Resettable Fuse
  • Maximum Voltage: 30V
  • Maximum Current: 4.3A
  • Package: Bulk
  • Mounting Type: Through Hole
