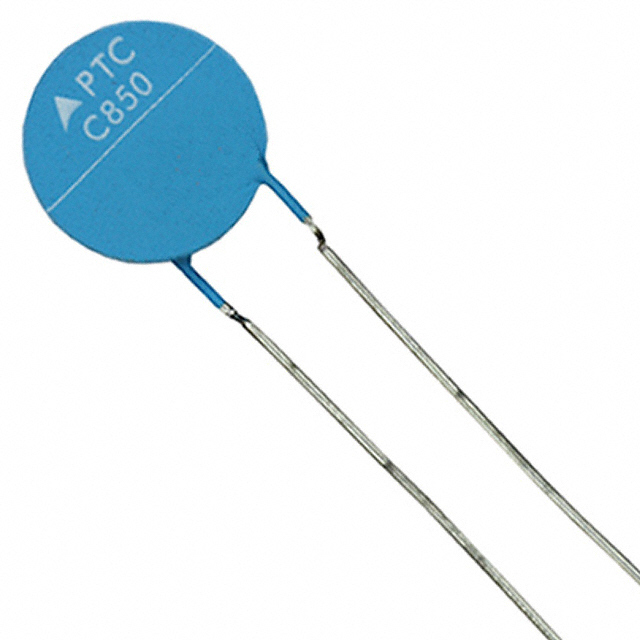

Same model may have multiple batches, images only for reference.
B59950C0130A070 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B59950C0130A070

Part No B59950C0130A070
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 80V 320MA RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Ceramic
Voltage - Max 80V
Current - Hold (Ih) (Max) 320 mA
Current - Trip (It) 500 mA
Current - Max 4.3 A
Resistance - 25°C (Typ) 4.9 Ohms
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Case / Package Radial, Disc
Size / Dimension 0.433" Dia x 0.138" T (11.00mm x 3.50mm)
Height - Seated (Max) 0.571" (14.50mm)
Lead Spacing 0.197\
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1598185-B59950C0130A070
Ultra Librarian 3D Model Ultra Librarian B59950C0130A070 CAD Model
