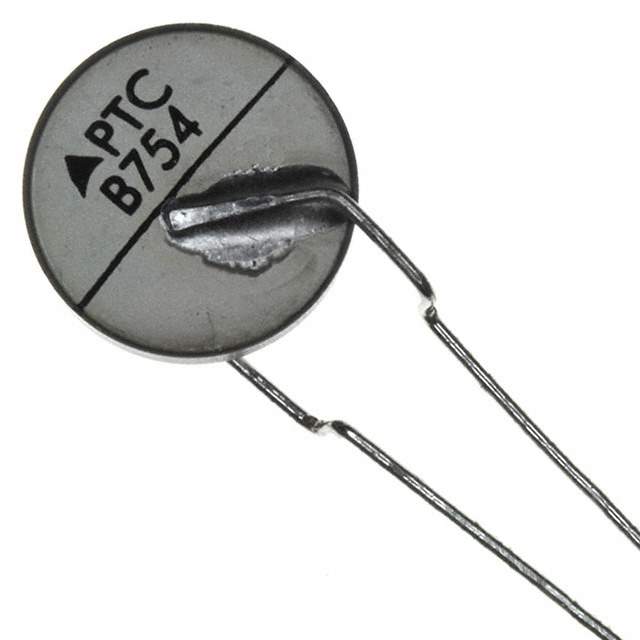

B59754B0120A070 Real Image
Same model may have multiple batches, images only for reference.

B59754B0120A070

Part No B59754B0120A070
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 420V RADIAL DISC / Ceramic PTC Resettable Fuse 420V Ih Through Hole Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 1337948-B59754B0120A070
HTSUS 8533.40.8070
ECCN EAR99
REACH Status REACH Unaffected
MSL Level 1 (Unlimited)
Standard Package 500
Approval Agency UL
Lead Spacing 0.197" (5.00mm)
Height - Seated (Max) 0.650" (16.50mm)
Size / Dimension 0.492" Dia x 0.276" T (12.50mm x 7.00mm)
Package / Case Radial, Disc
Mounting Type Through Hole
Temperature Range - Operating 0°C ~ 60°C
Resistance - 25°C (Typ) 150 Ohms
Time to Trip 3 s
Current - Trip (It) 100 mA
Current - Max 2 A
Voltage - Max 420V
Type Ceramic
Package Bulk
Mfr EPCOS - TDK Electronics
Category Circuit Protection - PTC Resettable Fuses
Ultra Librarian 3D Model Ultra Librarian B59754B0120A070 CAD Model

Description

The PTC Resettable Fuse from EPCOS-TDK Electronics is a ceramic type circuit protection component that comes in a bulk package with a size of 0.492 inches in diameter and 0.276 inches in thickness.

  • Size: 0.492 inches diameter x 0.276 inches thickness
  • Maximum Seated Height: 0.650 inches
  • Lead Spacing: 0.197 inches
  • Maximum Voltage: 420V
  • Maximum Current: 2A
  • Trip Current: 100mA
  • Time to Trip: 3 seconds
  • Mounting Type: Through-Hole
  • Package/Case: Radial Disc
  • Operating Temperature: 0°C to 60°C
  • Resistance @ 25°C: 150 Ohms
  • MSL Level: 1 (unlimited)
  • REACH: Unaffected
  • HTSUS: 8533.40.8070
  • Approvals: UL
