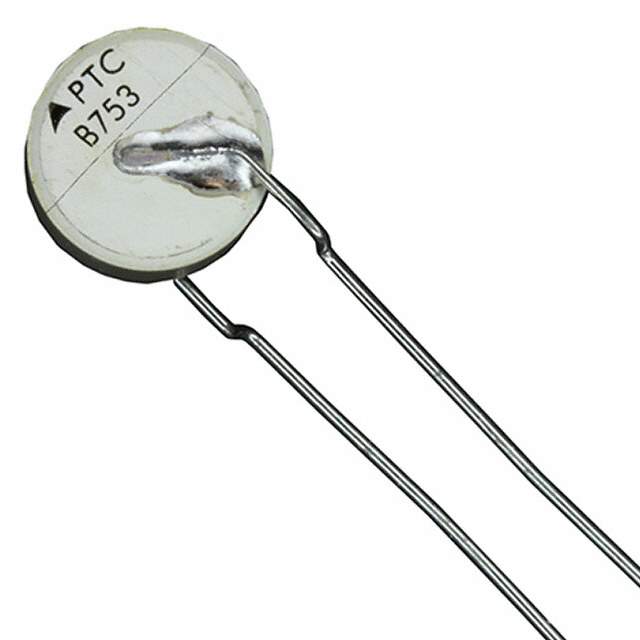

B59753B120A70 Real Image
Same model may have multiple batches, images only for reference.

B59753B120A70

Part No B59753B120A70
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description B59751 Series 120 Ohm 56 mA ±25 % PTC Thermistor for Overcurrent Protection
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals UL, VDE
Case / Package Radial
Contact Plating Tin
Current Rating 56 mA
Diameter 12.5 mm
Hold Current 56 mA
Lead Diameter 600 µm
Lead Free Lead Free
Lead Pitch 5 mm
Max Current Rating 2 A
Max Operating Temperature 125 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Pins 2
Packaging Bulk
Radiation Hardening No
REACH SVHC Unknown
Resistance 120 Ω
RoHS Compliant
Time to Trip 3 s
Trip Current 112 mA
Width 9 mm
Win Source Part Number 1177920-B59753B120A70
Categories PTC Resettable Fuses
Manufacturer EPCOS (TDK)
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B59753B120A70 CAD Model

Description

The EPCOS (TDK) PTC Resettable Fuse is an ideal choice for circuit protection in various electronic devices.

  • Current Rating: 56 mA
  • Protection Against: Overcurrent and short-circuit conditions
  • Resistance: 120 Ω
  • Trip Current: 112 mA
  • Approvals: UL and VDE
  • Time to Trip: 3 s
  • Contact Plating: Tin
  • Lead-Free: Yes
  • Mounting: Through hole
  • Diameter: 12.5 mm
  • Width: 9 mm
  • Package: Bulk
  • Supply and Demand Status: Limited
