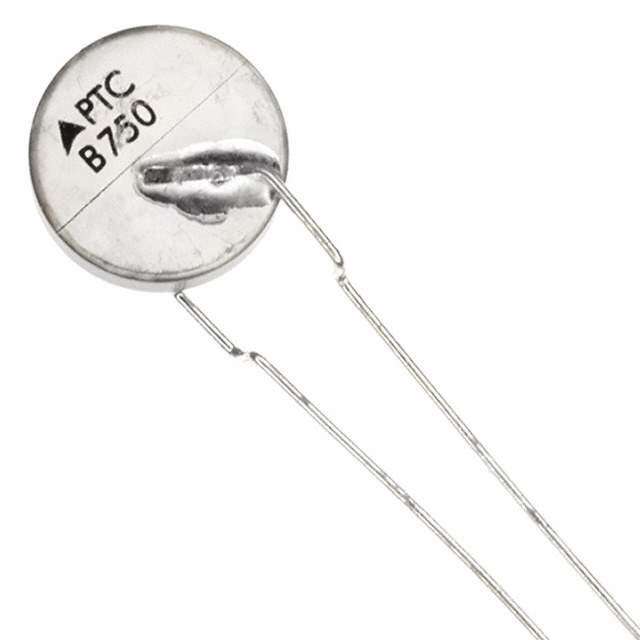

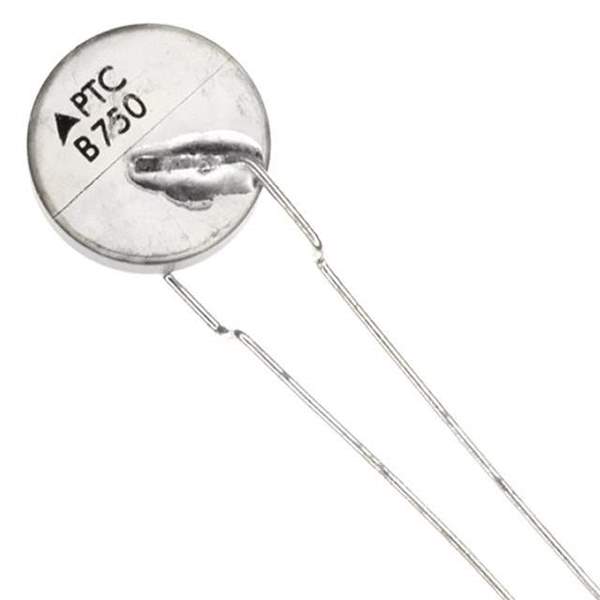

The B59750B120A70 is a PTC (Positive Temperature Coefficient) thermistor from EPCOS (TDK) primarily utilized for overcurrent protection. These thermistors exhibit a significant increase in resistance once they exceed a defined temperature threshold, effectively limiting current flow and acting as a resettable fuse in various electronic circuits.

Applications

• Overcurrent protection in consumer electronics: Protecting devices like TVs, DVD players, and audio equipment from damage due to excessive current.
• Short-circuit protection in power tools: Preventing damage to power tool motors and circuitry.
• Overload protection in lighting ballasts: Protecting lighting ballasts from overheating and failure.
• Protection of communication lines: Safeguarding communication equipment from surges and overcurrent conditions.
• Automotive electronics protection: Protecting automotive circuits from damage due to shorts or overloads.

Features

• Self-resetting functionality: Automatically returns to a low-resistance state after the overcurrent condition is removed.
• Rapid response to overcurrent events: Quickly limits current flow to protect downstream components.
• Small form factor: Allows for easy integration into various electronic devices.
• RoHS compliant: Meets environmental standards for restricted substances.
• Long operational lifespan: Provides reliable protection over extended periods.

Benefits

• Enhanced equipment reliability: Protects sensitive components from damage caused by overcurrents.
• Reduced maintenance requirements: Eliminates the need for fuse replacement after each overcurrent event.
• Improved safety: Prevents potential hazards associated with overcurrent conditions.
• Cost-effective protection solution: Provides a reliable and affordable means of overcurrent protection.
• Environmentally responsible: RoHS compliant construction.

Additional Details

The B59750B120A70's key specifications include its trip current, hold current, and maximum voltage ratings. The trip current defines the level at which the thermistor switches to a high resistance state, while the hold current specifies the maximum current it can continuously carry without tripping. The operating temperature range and resistance values at different temperatures are also important considerations for proper application. Consult the datasheet for specific values and detailed performance characteristics.
