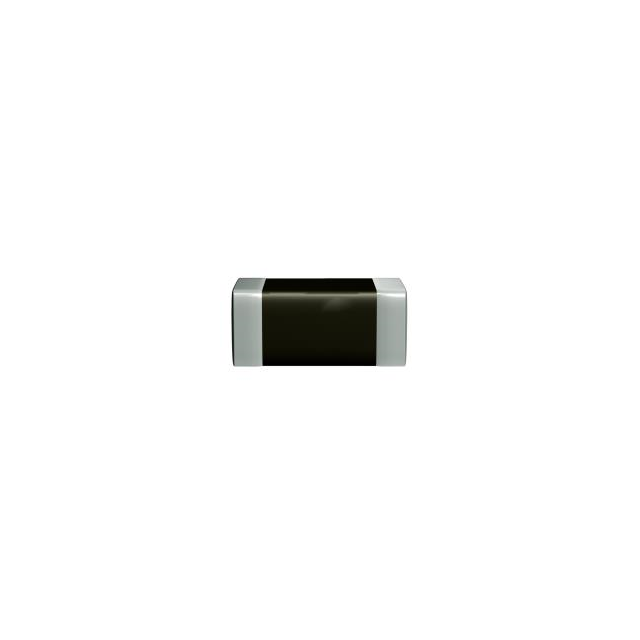

B59623A0090A062 Real Image
Same model may have multiple batches, images only for reference.

B59623A0090A062

Part No B59623A0090A062
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description THERMISTOR PTC 470 OHM 25% 0603 / Ceramic PTC Resettable Fuse 80V Ih Surface Mount 0603 (1608 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Manufacturer EPCOS - TDK Electronics
Packaging Reel - TR
Type Ceramic
Voltage - Max 80V
Current - Max 150 mA
Current - Trip (It) 25 mA
Resistance - Initial (Ri) (Min) 300 Ohms
Resistance - Post Trip (R1) (Max) 470 Ohms
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting Surface Mount
Case / Package 0603 (1608 Metric)
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Thickness (Max) 0.031" (0.80mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Part Number 495-B59623A0090A062CT,B59623A 90A 62,495-B59623A0090A062TR,495-76369-2-ND,495-76369-1-ND,B59623A90A62,B59623A90A62-ND,B59623A0090A062-ND,495-76369-1,495-76369-2,495-B59623A0090A062DKR
Standard Package 4,000
Win Source Part Number 1326024-B59623A0090A062
Ultra Librarian 3D Model Ultra Librarian B59623A0090A062 CAD Model

Description

The B59623A0090A062 is a surface mount PTC resettable fuse from EPCOS - TDK Electronics.

  • Maximum Voltage Rating: 80V
  • Maximum Current Rating: 150mA
  • Current Trip: 25mA
  • Initial Resistance: 300 Ohms
  • Post-Trip Resistance: 470 Ohms
  • Operating Temperature Range: -40°C to 125°C
  • AEC-Q200 Rated: Yes
