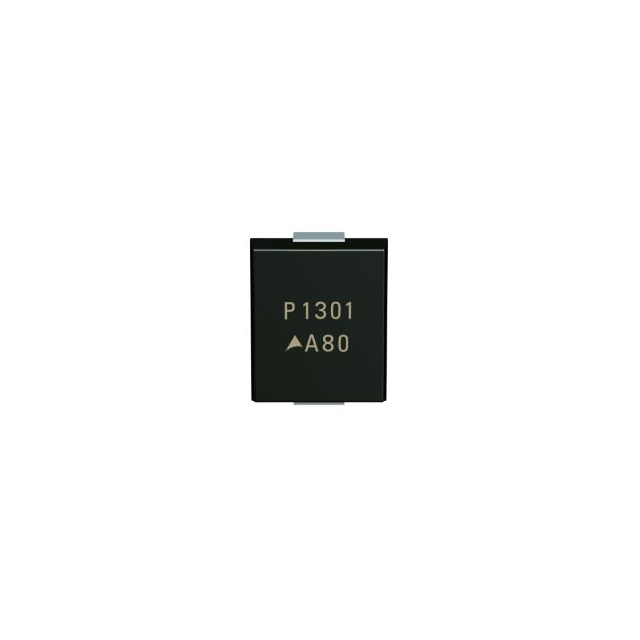

B59301P1120A062 Real Image
Same model may have multiple batches, images only for reference.

B59301P1120A062

Part No B59301P1120A062
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 24V 310MA 4032 / Ceramic PTC Resettable Fuse 24V 310 mA Ih Surface Mount 4032 (10080 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 1350144-B59301P1120A062
HTSUS 8533.40.8070
ECCN EAR99
REACH Status REACH Unaffected
MSL Level 1 (Unlimited)
Standard Package 1,000
Thickness (Max) 0.150" (3.80mm)
Size / Dimension 0.394" L x 0.315" W (10.00mm x 8.00mm)
Package / Case 4032 (10080 Metric)
Mounting Type Surface Mount
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 60°C
Resistance - 25°C (Typ) 3.1 Ohms
Resistance - Initial (Ri) (Min) 1.85 Ohms
Current - Trip (It) 640 mA
Current - Hold (Ih) (Max) 310 mA
Current - Max 1.6 A
Voltage - Max 24V
Type Ceramic
Package Tape & Reel (TR) Cut Tape (CT)
Series Automotive, AEC-Q200, B59301
Mfr EPCOS - TDK Electronics
Category Circuit Protection - PTC Resettable Fuses
Ultra Librarian 3D Model Ultra Librarian B59301P1120A062 CAD Model

Description

The EPCOS (TDK) 1350144-B59301P1120A062 is an electronic component that belongs to the category of circuit protection - PTC resettable fuses.

  • Series: Automotive, AEC-Q200, B59301
  • Type: Ceramic
  • Package: Tape and Reel (TR) Cut Tape (CT)
  • Size / Dimension: 0.394" L x 0.315" W (10.00mm x 8.00mm)
  • Voltage: 24V
  • Current: 1.6A
  • Mounting Type: Surface Mount
  • Package / Case: 4032 (10080 Metric)
  • Temperature Range: -40°C to 60°C
