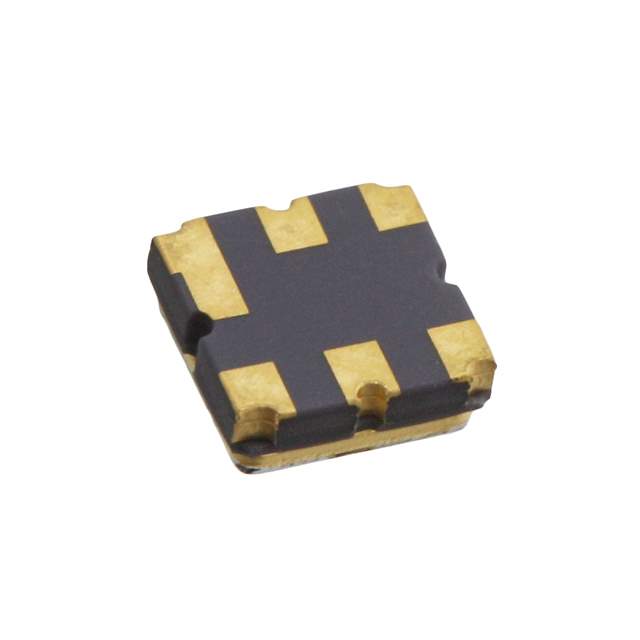

The B39941-B4124-U410 is a SAW (Surface Acoustic Wave) filter manufactured by EPCOS (TDK). SAW filters are used extensively in radio frequency (RF) applications to selectively pass or reject signals within a specific frequency range. They are key components in wireless communication devices, ensuring clear and reliable signal transmission.

Applications

• Mobile communication devices (e.g., smartphones)
• Wireless base stations
• RF front-end modules
• GPS receivers
• Satellite communication systems

Features

• High selectivity: Provides excellent rejection of unwanted signals, minimizing interference.
• Low insertion loss: Ensures minimal signal attenuation within the passband, maximizing signal strength.
• Small size: Allows for compact integration into RF modules and devices.
• Stable performance: Offers reliable operation over a wide temperature range.
• Surface mountable device (SMD): Facilitates automated assembly and high-volume production.

Benefits

• Improved signal quality: By filtering out noise and interference, the B39941-B4124-U410 enhances the overall signal quality in communication systems.
• Increased system performance: The low insertion loss and high selectivity contribute to improved system performance and reliability.
• Reduced size and weight: The small size of the filter enables the development of more compact and lightweight communication devices.
• Cost-effective solution: SAW filters offer a cost-effective filtering solution for a wide range of RF applications.
• Enhanced reliability: Stable performance over temperature ensures reliable operation in demanding environments.

Additional Details

The performance characteristics of the B39941-B4124-U410, such as center frequency, bandwidth, insertion loss, and rejection, are essential for selecting the appropriate SAW filter for a given application. SAW filters are typically fabricated using piezoelectric materials, like lithium tantalate (LiTaO3) or lithium niobate (LiNbO3), which exhibit excellent acoustic properties. The design of the interdigital transducers (IDTs) patterned on the piezoelectric substrate determines the filter's performance. These IDTs generate and detect surface acoustic waves, which are then used to filter the RF signal. Consult the official datasheet for detailed electrical specifications and recommended operating conditions.
