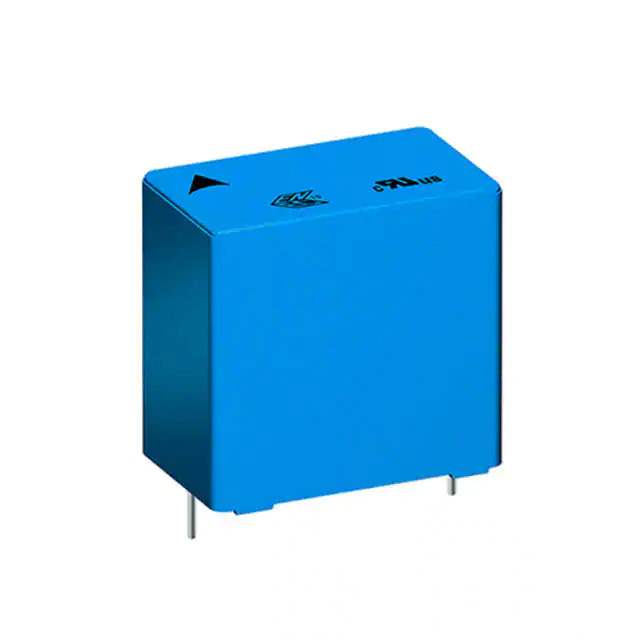

B32923C3105M000 Real Image
Same model may have multiple batches, images only for reference.

B32923C3105M000

Part No B32923C3105M000
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 1UF 20% 630VDC RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr EPCOS (TDK)
Series B3292*C/D - X2 Standard
Package Bulk
Product Status Active
Capacitance 1 µF
Tolerance ±20%
Voltage Rating - AC 305V
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP)
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 1.043" L x 0.433" W (26.50mm x 11.00mm)
Height - Seated (Max) 0.807" (20.50mm)
Termination PC Pins
Lead Spacing 0.886" (22.50mm)
Applications EMI, RFI Suppression
Ratings X2
Standard Package 510 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Win Source Part Number 850009-B32923C3105M000
Ultra Librarian 3D Model Ultra Librarian B32923C3105M000 CAD Model

Description

The B3292*C/D - X2 Standard capacitor is a high-quality film capacitor designed for EMI and RFI suppression applications.

  • Capacitance: 1 μF
  • Tolerance: ±20%
  • Voltage Rating (AC): 305V
  • Voltage Rating (DC): 630V
  • Dielectric Material: Polypropylene (PP)
  • Mounting Type: Through Hole
  • Termination: PC Pins
  • Size (L x W): 1.043" x 0.433" (26.50mm x 11.00mm)
  • Height: 0.807" (20.50mm)
  • Manufacturer: EPCOS (TDK)
  • Packaging: Bulk (510 pieces)
  • Operating Temperature: -40°C to 110°C
