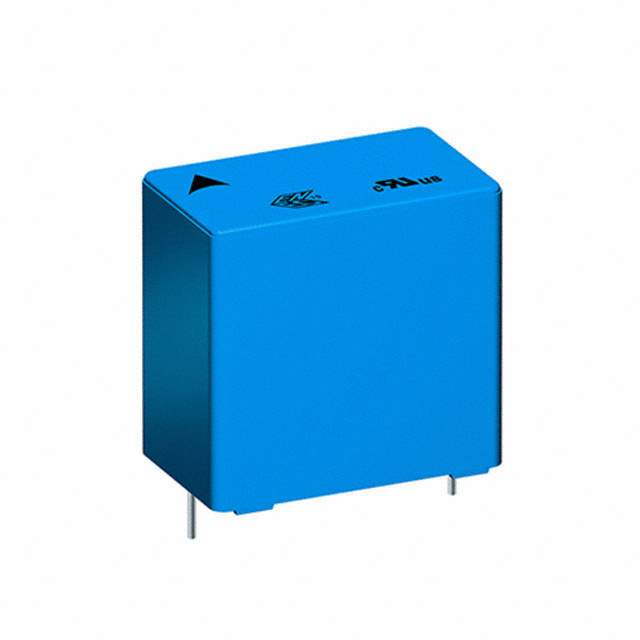

B32922J3224K Real Image
Same model may have multiple batches, images only for reference.

B32922J3224K

Part No B32922J3224K
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr EPCOS - TDK Electronics
Series B3292*H/J - X2 High Humidity
Package Bulk
Capacitance 0.22 µF
Tolerance ±10%
Voltage Rating - AC 305V
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.709" L x 0.335" W (18.00mm x 8.50mm)
Height - Seated (Max) 0.571" (14.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications Automotive; EMI, RFI Suppression
Ratings AEC-Q200, X2
Features 85C/85% Humidity
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0020
Win Source Part Number 1315395-B32922J3224K
Ultra Librarian 3D Model Ultra Librarian B32922J3224K CAD Model

Description

The B3292*H/J - X2 High Humidity Capacitor is a reliable and high-performance component that is designed to operate in harsh environments.

  • Capacitance: 0.22 µF
  • Voltage Rating: 305V AC and 630V DC
  • Ideal for: automotive and EMI/RFI suppression applications
  • Temperature Range: -40°C to 110°C
  • Tolerance: ±10%
  • Dielectric Material: polypropylene (PP) and metallized
  • Package/Case: radial
  • Height: 0.571" (14.50mm)
  • Lead Spacing: 0.591" (15.00mm)
  • Rating: AEC-Q200 and X2 rated
