Same model may have multiple batches, images only for reference.

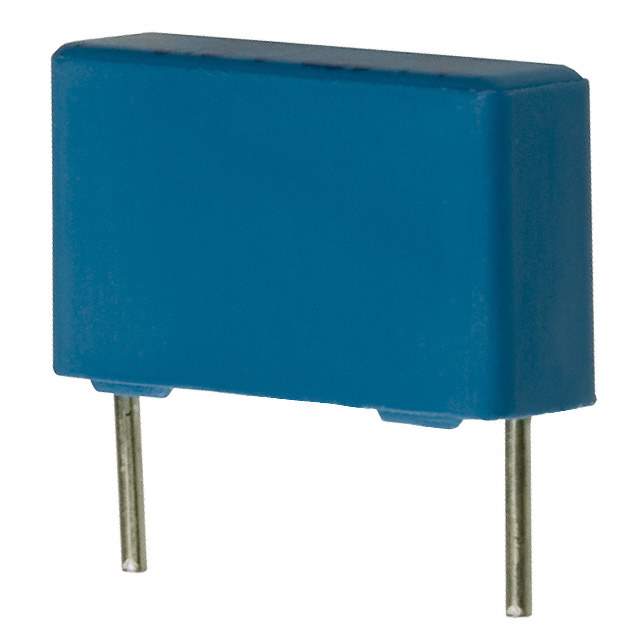

B32922C3564K189 Real Image
Same model may have multiple batches, images only for reference.

B32922C3564K189

Part No B32922C3564K189
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 0.56UF 10% 630VDC RAD / 0.56 µF Film Capacitor 305V 630V Polypropylene (PP) Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr EPCOS - TDK Electronics
Series B3292*C/D - X2 Standard
Package Tape & Reel
Capacitance 0.56 µF
Tolerance ±10%
Voltage Rating - AC 305V
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP)
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications EMI, RFI Suppression
Ratings X2
Standard Package 2,200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Win Source Part Number 1338344-B32922C3564K189
Ultra Librarian 3D Model Ultra Librarian B32922C3564K189 CAD Model

Description

The EPCOS (TDK) B32922C3564K189 film capacitor is a part of the B3292*C/D - X2 Standard series.

  • Manufacturer: EPCOS (TDK)
  • Series: B3292*C/D - X2 Standard
  • Capacitance: 0.56 μF
  • Tolerance: ±10%
  • Voltage Rating: 305V AC and 630V DC
  • Application: EMI and RFI Suppression
  • Rating: X2
  • Lead Spacing: 0.591" (15.00mm)
  • Package/Case: Radial
  • Mounting Type: Through-Hole
  • Packaging: Tape and Reel
  • Standard Package: 2,200
  • Operating Temperature: -40°C to 110°C
  • ECCN: EAR99
  • MSL Level: No MSL Level
