Same model may have multiple batches, images only for reference.

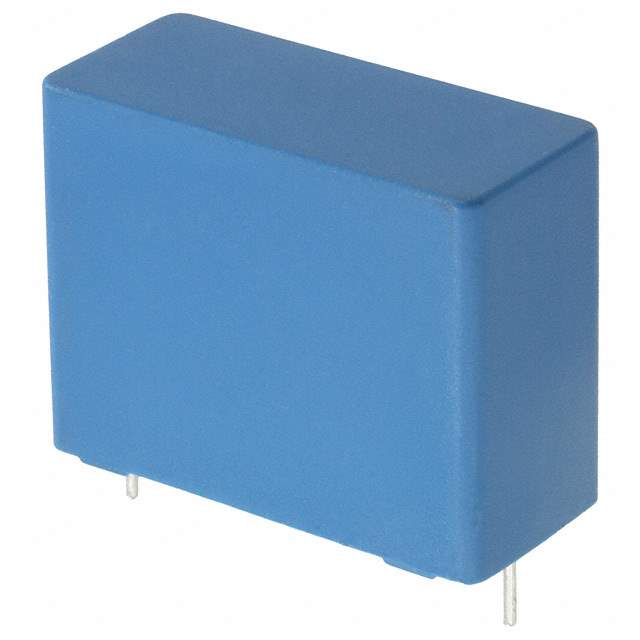

B32776E8306K000 Real Image
Same model may have multiple batches, images only for reference.

B32776E8306K000

Part No B32776E8306K000
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 30UF 10% 800VDC RADIAL / 30 µF Film Capacitor 800V Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr EPCOS - TDK Electronics
Series B3277* - MKP DC-Link
Package Bulk
Capacitance 30 µF
Tolerance ±10%
Voltage Rating - DC 800V
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 5 mOhms
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Dimension 1.654" L x 1.181" W (42.00mm x 30.00mm)
Height - Seated (Max) 1.772" (45.00mm)
Termination PC Pins
Lead Spacing 1.476" (37.50mm)
Applications DC Link, DC Filtering
Features Long Life
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Other Names B32776E8306K-ND,495-75764,B32776E8306K
Standard Package 100
Win Source Part Number 959243-B32776E8306K000
Ultra Librarian 3D Model Ultra Librarian B32776E8306K000 CAD Model

Description

The B32776E8306K000 is a film capacitor manufactured by EPCOS - TDK Electronics.

  • Capacitance: 30 μF
  • Tolerance: ±10%
  • Mounting: Through-hole
  • Package: Radial
  • Lead Spacing: 1.476" (37.50mm)
  • Voltage Rating: 800V
  • Applications: DC link and DC filtering
  • Height: 1.772" (45.00mm) when seated
  • ESR (Equivalent Series Resistance): 5 mOhms
  • Material: Polypropylene (PP), metallized
  • Temperature Range: -40°C to 105°C
  • Series: B3277* - MKP DC-Link
  • Packaging: Bulk
  • Standard Package Quantity: 100
