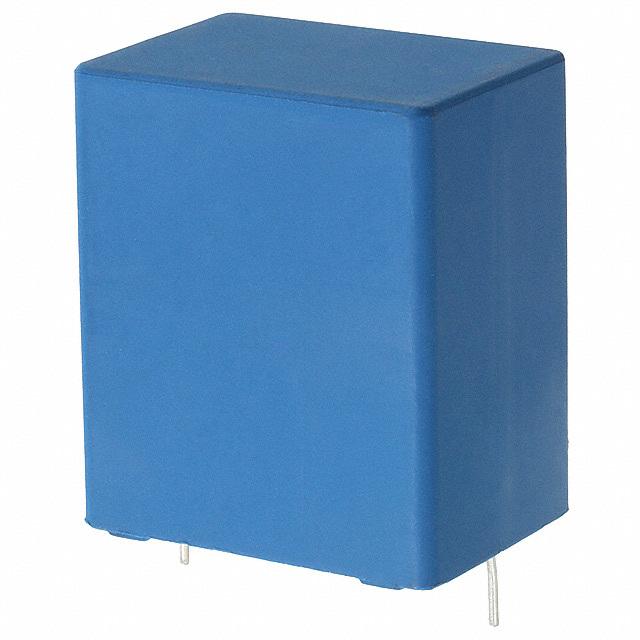

B32774D1505K000 EPCOS (TDK)
Same model may have multiple batches, images only for reference.

B32774D1505K000

Part No B32774D1505K000
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 5UF 10% 1.3KVDC RADIAL
Datasheet
B32774D1505K000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Capacitance 5μF
Tolerance ±10%
Voltage Rating - DC 1300V (1.3kV)
Dielectric Material Polypropylene (PP), Metallized
ESR 9.8 mOhm
Temperature Range - Operating -40°C to 105°C
Mounting Through Hole
Dimension 1.240" L x 0.866" W (31.50mm x 22.00mm)
Height - Seated (Max) 1.437" (36.50mm)
Termination PC Pins
Lead Spacing 1.083" (27.50mm)
Applications DC Link, DC Filtering
Features Long Life
Win Source Part Number 199811-B32774D1505K000
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian B32774D1505K000 CAD Model

Description

Product Overview

The B32774D1505K000 capacitor is engineered to deliver superior performance in high-frequency applications. It is designed for those seeking efficiency and reliability.

Features and Benefits

  • Excellent frequency characteristics for dynamic applications.
  • Durable casing resisting environmental stress.
  • High ripple current capability.

Applications

  • Switch-mode power supplies
  • RF amplifiers
  • Signal filtering
  • Industrial applications

Additional Details

The B32774D1505K000 is well-suited for integration into various electronic systems where performance and reliability are paramount.
