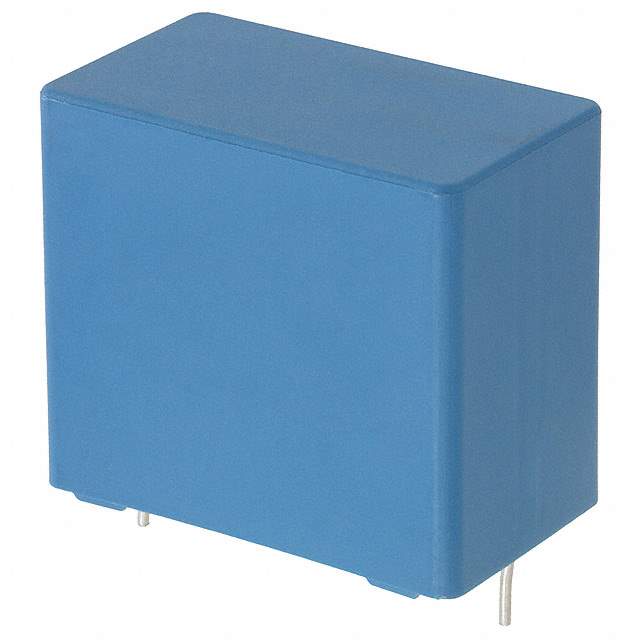

The B32774D1305K is a film capacitor manufactured by EPCOS, a TDK Group company. These capacitors are designed for demanding applications requiring high reliability, high pulse strength, and high current capability. They are typically used in power electronics, industrial equipment, and other applications where robust performance is critical.

Applications:

• Power converters
• Inverters
• Renewable energy systems (solar, wind)
• Motor drives
• Power factor correction (PFC)

Features:

• Metallized Polypropylene Film Capacitor
• High Pulse Strength
• High Current Capability
• Self-Healing Properties
• Robust Construction

Benefits:

• Provides reliable performance in demanding power electronic applications.
• Capable of handling high pulse currents and voltages.
• Offers long operational life with excellent stability.
• Reduces the risk of catastrophic failures due to its self-healing properties.
• Suitable for use in harsh environmental conditions.

Additional Details:

The B32774D1305K is a metallized polypropylene film capacitor with a capacitance of 3µF and a voltage rating of 1300VDC. It features a robust construction designed to withstand high pulse currents and voltages. The self-healing properties of the film allow the capacitor to recover from minor breakdowns, extending its operational life. These capacitors are commonly used in DC link circuits, snubber circuits, and resonant circuits. They are also used in power factor correction (PFC) applications to improve the efficiency of power supplies. The capacitor is designed to meet industry standards for safety and performance. Proper mounting and connection are essential to ensure optimal performance and reliability. EPCOS offers a range of accessories, such as mounting clamps and terminal connectors, to facilitate installation.

The capacitor is typically supplied with screw terminals for easy connection. It is designed for operation over a wide temperature range. Due to the high voltages involved, careful consideration must be given to insulation and safety during installation and operation.
