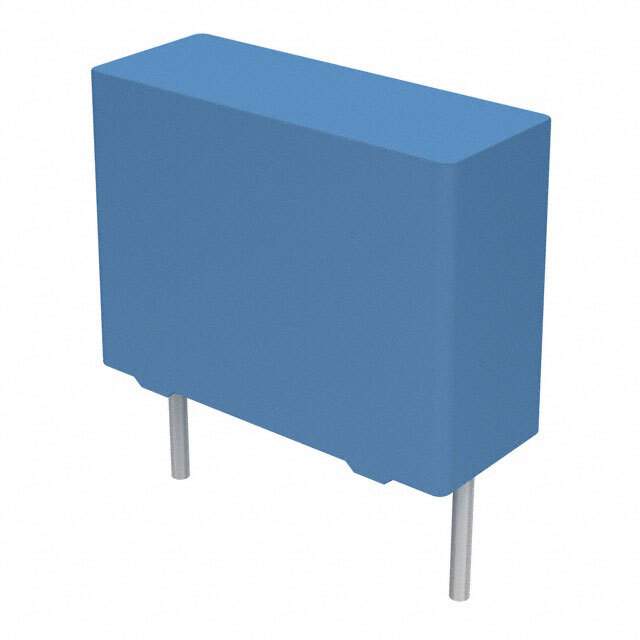

B32682A7472K000 Real Image1 B32682A7472K000 Real Image2
Same model may have multiple batches, images only for reference.
B32682A7472K000 Real Image1 B32682A7472K000 Real Image2
B32682A7472K000 Real Image1 B32682A7472K000 Real Image2
Same model may have multiple batches, images only for reference.

B32682A7472K000

Part No B32682A7472K000
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 4700PF 10% 1.25KVDC RAD / 4700 pF Film Capacitor 450V 1250V (1.25kV) Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr EPCOS - TDK Electronics
Series B3268* - MFP Very High Pulse
Package Bulk
Capacitance 4700 pF
Tolerance ±10%
Voltage Rating - AC 450V
Voltage Rating - DC 1250V (1.25kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.709" L x 0.276" W (18.00mm x 7.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications High Pulse, DV/DT
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Other Names B32682A7472K,495-7322
Standard Package 1,000
Win Source Part Number 1164192-B32682A7472K000
Ultra Librarian 3D Model Ultra Librarian B32682A7472K000 CAD Model

Description

The EPCOS - TDK Electronics B32682A7472K000 is a film capacitor with a capacitance of 4700 pF and a tolerance of ±10%.

  • Capacitance: 4700 pF
  • Tolerance: ±10%
  • Voltage Rating (AC): 450V
  • Voltage Rating (DC): 1250V
  • Application: high pulse and DV/DT
  • Mounting: through hole
  • Package/Case: radial with PC pins
  • Height Seated (Max): 0.472" (12.00mm)
  • Lead Spacing: 0.591" (15.00mm)
  • Temperature Range: -55°C ~ 110°C
  • REACH: unaffected
