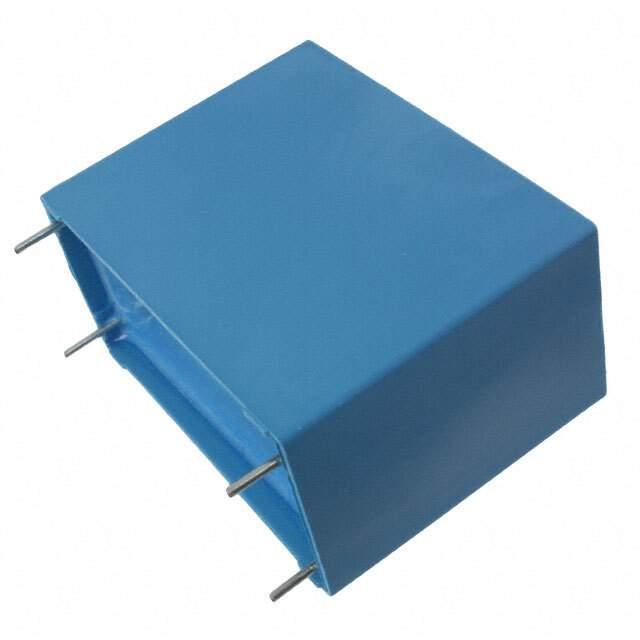

B32678G1156K Real Image
Same model may have multiple batches, images only for reference.

B32678G1156K

Part No B32678G1156K
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 15UF 10% 750VDC RADIAL
Datasheet
B32678G1156K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Capacitance 15μF
Tolerance ±10%
Voltage Rating - AC 375V
Voltage Rating - DC 750V
Dielectric Material Polypropylene (PP), Metallized
ESR 4.5 mOhm
Temperature Range - Operating -40°C to 105°C
Mounting Through Hole
Dimension 2.264" L x 1.181" W (57.50mm x 30.00mm)
Height - Seated (Max) 1.772" (45.00mm)
Termination PC Pins
Lead Spacing 2.067" (52.50mm)
Applications DC Link, DC Filtering
Features Long Life
Win Source Part Number 199789-B32678G1156K
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B32678G1156K CAD Model

Description

Product Overview

The B32678G1156K series capacitor excels in high-current applications, offering reliable performance with great longevity. Its compact design allows for integration into space-limited systems.

Features and Benefits

  • Compact form factor
  • High ripple current capability
  • Excellent insulation resistance
  • Simplifies thermal management

Applications

  • Uninterruptible power supplies (UPS)
  • Solar inverters
  • Audio amplifiers
  • Power supply units
