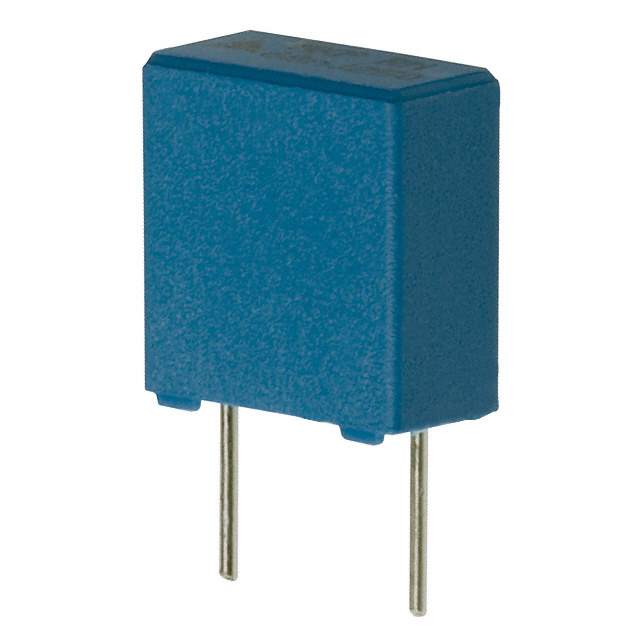

B32620J681J189 Real Image
Same model may have multiple batches, images only for reference.

B32620J681J189

Part No B32620J681J189
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 680PF 5% 1KVDC RADIAL
Datasheet
B32620J681J189 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging Reel - TR
Status Obsolete(EOL)
Capacitance 680pF
Tolerance ±5%
Voltage Rating - AC 600V
Voltage Rating - DC 1000V (1kV)
Dielectric Material Polypropylene (PP), Metallized - Stacked
Temperature Range - Operating -55°C to 105°C
Mounting Through Hole
Dimension 0.394" L x 0.197" W (10.00mm x 5.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Termination PC Pins
Lead Spacing 0.295" (7.50mm)
Applications High Pulse, DV/DT
Win Source Part Number 199700-B32620J681J189
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B32620J681J189 CAD Model

Description

Product Overview

The B32620J681J189 is a high-quality metallized polypropylene film capacitor designed for use in a variety of electronic applications. It features a compact design and offers excellent electrical performance and reliability.

Applications

  • Power supplies
  • Energy management systems
  • DC-link circuits
  • Motor drives

Features and Benefits

  • High stability and low loss
  • Compact and lightweight
  • Wide operating temperature range
  • Long lifespan

Additional Details

This capacitor is suitable for high-frequency and switching applications due to its low dissipation factor and excellent self-healing properties.
