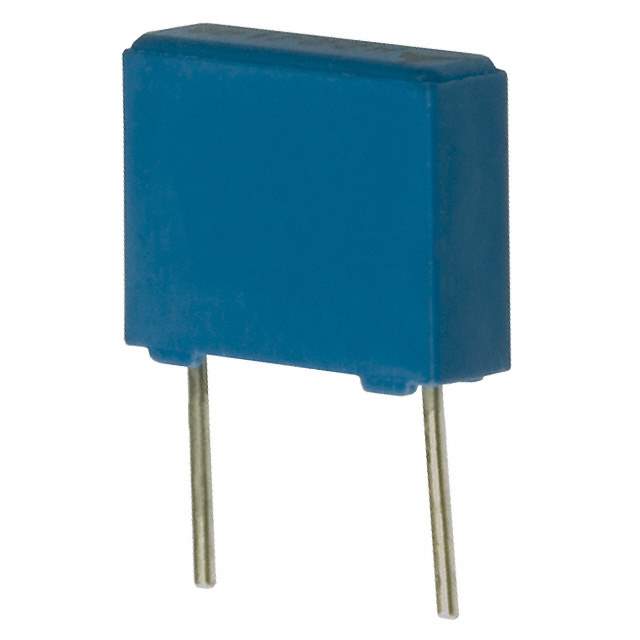

B32620A6152J000 Real Image
Same model may have multiple batches, images only for reference.

B32620A6152J000

Part No B32620A6152J000
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 1500PF 5% 630VDC RADIAL / Cap Film 0.0015uF 630V PP 5% (10 X 4 X 8.5mm) Radial Stacked 7.5mm 105°C Bulk
Datasheet
B32620A6152J000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Series B32620
Packaging Bulk
Capacitance 1500pF
Tolerance ±5%
Voltage Rating - AC 400V
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP), Metallized - Stacked
Operating Temperature Range -55°C ~ 105°C
Mounting Style Through Hole
Package Radial
Dimension 0.394" L x 0.157" W (10.00mm x 4.00mm)
Height - Seated (Maximum) 0.335" (8.50mm)
Termination PC Pins
Lead Spacing 0.295" (7.50mm)
Applications High Pulse, DV/DT
Win Source Part Number 770964-B32620A6152J000
Popularity Medium
Supply and Demand Status Limited
Family Name B 32 620
Introduction Date June 25, 2001
ECCN EAR99
Country of Origin Brazil
Halogen Free Not Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian B32620A6152J000 CAD Model

Description

The EPCOS (TDK) B32620A6152J000 is a radial through-hole capacitor that is ideal for high pulse and DV/DT applications. With a capacitance of 1500pF and a voltage rating of 400V AC and 630V DC, this capacitor has a tolerance of ±5% and lead spacing of 0.295 inches.

  • Capacitance: 1500pF
  • Voltage Rating: 400V AC / 630V DC
  • Tolerance: ±5%
  • Lead Spacing: 0.295 inches
  • Dielectric Material: Polypropylene (PP), Metallized-Stacked
  • Height: 0.335 inches
  • Dimensions: 0.394 inches L x 0.157 inches W
  • Family: B 32 620
  • Category: Capacitor
  • Operating Temperature: -55°C to 105°C
  • Country of Manufacture: Brazil
  • Estimated EOL Date: 2025
  • Halogen Free: No
  • Alternative Parts: PHE426MK4150JR05, PHE426MK4150JK01R17T0, PHE426MK4150JK01R05, F426KG152J630L
