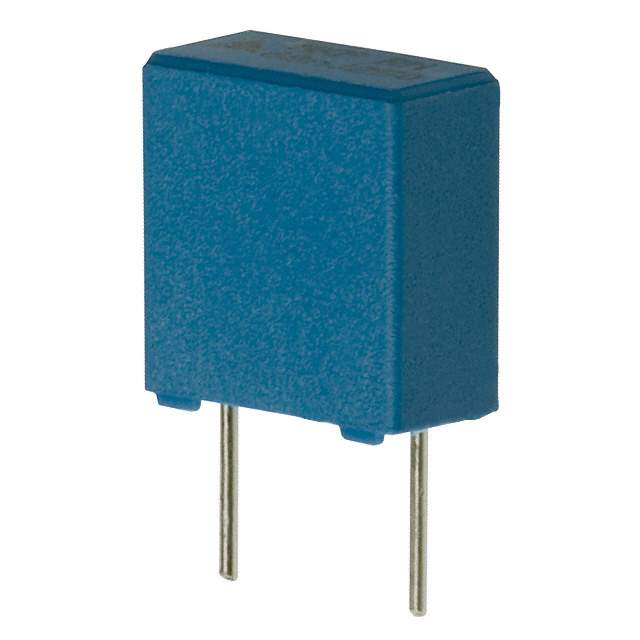

B32620A0472K000 Real Image
Same model may have multiple batches, images only for reference.

B32620A0472K000

Part No B32620A0472K000
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr EPCOS - TDK Electronics
Series B3262* - MKP High Pulse (stacked)
Package Bulk
Capacitance 4700 pF
Tolerance ±10%
Voltage Rating - AC 500V
Voltage Rating - DC 1000V (1kV)
Dielectric Material Polypropylene (PP), Metallized - Stacked
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.394" L x 0.197" W (10.00mm x 5.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Termination PC Pins
Lead Spacing 0.295" (7.50mm)
Applications High Pulse, DV/DT
Other Names B32620A472K,B32620A472K,B32620A 472K
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Win Source Part Number 1302429-B32620A0472K000
Ultra Librarian 3D Model Ultra Librarian B32620A0472K000 CAD Model

Description

The B3262* - MKP High Pulse (stacked) capacitor series from EPCOS - TDK Electronics is a bulk package radial through-hole capacitor.

  • Capacitance: 4700 pF
  • Tolerance: ±10%
  • Voltage Rating (AC): 500V
  • Voltage Rating (DC): 1000V
  • Dielectric Material: Polypropylene (PP), Metallized - Stacked
  • Application: High pulse and DV/DT applications
  • Height Seated: 0.413" (10.50mm)
  • Lead Spacing: 0.295" (7.50mm)
  • Operating Temperature: -55°C to 105°C
