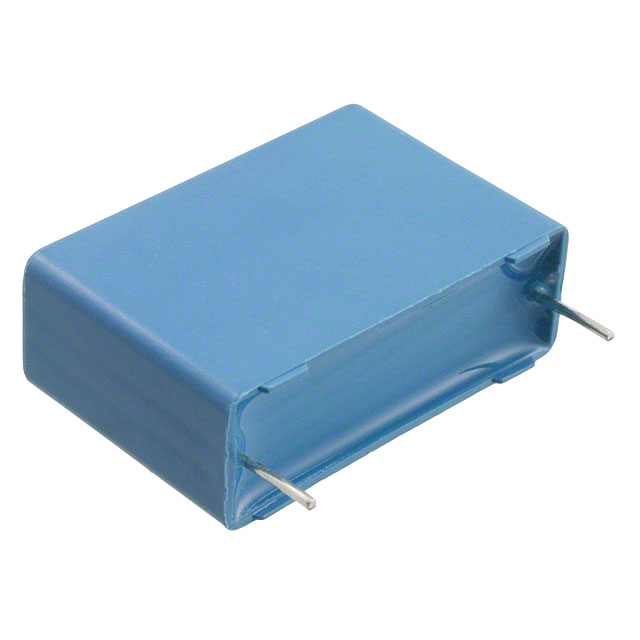

B32524Q3225K EPCOS (TDK)
Same model may have multiple batches, images only for reference.

B32524Q3225K

Part No B32524Q3225K
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 2.2UF 10% 250VDC RADIAL
Datasheet
B32524Q3225K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Capacitance 2.2μF
Tolerance ±10%
Voltage Rating - AC 160V
Voltage Rating - DC 250V
Dielectric Material Polyester, Polyethylene Terephthalate (PET), Metallized
Temperature Range - Operating -55°C to 125°C
Mounting Through Hole
Dimension 1.240" L x 0.433" W (31.50mm x 11.00mm)
Height - Seated (Max) 0.827" (21.00mm)
Termination PC Pins
Lead Spacing 1.083" (27.50mm)
Applications Automotive; EMI, RFI Suppression
Win Source Part Number 104424-B32524Q3225K
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B32524Q3225K CAD Model

Description

Product Overview

The B32524Q3225K is a high-performance film capacitor designed for demanding applications where reliability and efficiency are crucial. With a robust construction, it is perfect for both commercial and industrial use.

Applications

  • AC applications
  • Automotive electronic systems
  • HVAC systems
  • Renewable energy systems

Features and Benefits

  • High pulse strength
  • Exceptional thermal stability
  • Low dielectric absorption
  • Long service life and high reliability

Additional Details

Noted for its precise capacitance discharge capabilities, the B32524Q3225K is an ideal choice for high-frequency applications. Its compact size aids in reducing the footprint, leading to more efficient use of space on PCBs.
