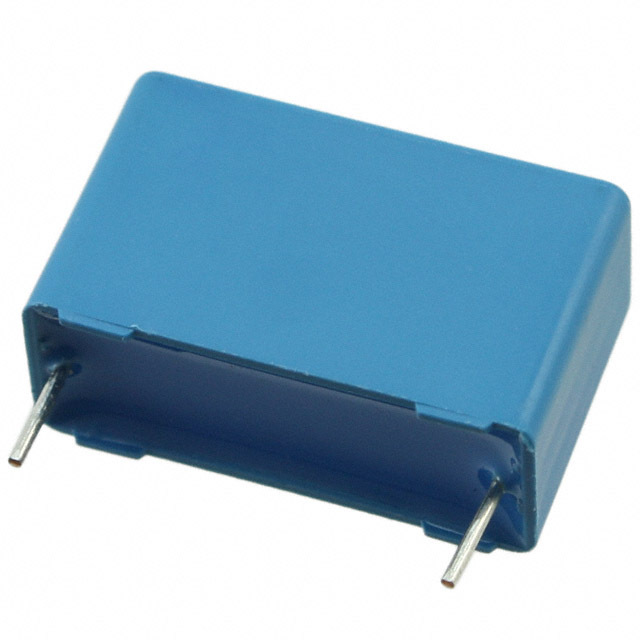

B32523Q1475K EPCOS (TDK)
Same model may have multiple batches, images only for reference.

B32523Q1475K

Part No B32523Q1475K
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 4.7UF 10% 100VDC RADIAL
Datasheet
B32523Q1475K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Capacitance 4.7μF
Tolerance ±10%
Voltage Rating - AC 63V
Voltage Rating - DC 100V
Dielectric Material Polyester, Polyethylene Terephthalate (PET), Metallized
Temperature Range - Operating -55°C to 125°C
Mounting Through Hole
Dimension 1.043" L x 0.276" W (26.50mm x 7.00mm)
Height - Seated (Max) 0.630" (16.00mm)
Termination PC Pins
Lead Spacing 0.886" (22.50mm)
Applications Automotive; EMI, RFI Suppression
Win Source Part Number 104421-B32523Q1475K
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B32523Q1475K CAD Model

Description

Product Overview

The B32523Q1475K film capacitor boasts a compact design with outstanding electrical parameters. It is highly effective across a spectrum of applications, providing reliability and efficiency in even the most demanding environments.

  • Applications:
    • Switch-mode power supplies
    • Coupling/decoupling circuits
    • Automotive electronics
  • Features and Benefits:
    • Low ESR and ESL
    • Good thermal stability
    • High reliability and endurance
  • Additional Details:
    • Capacity: 4.7μF
    • Voltage Rating: 250V
    • Temperature Range: -40°C to 85°C
