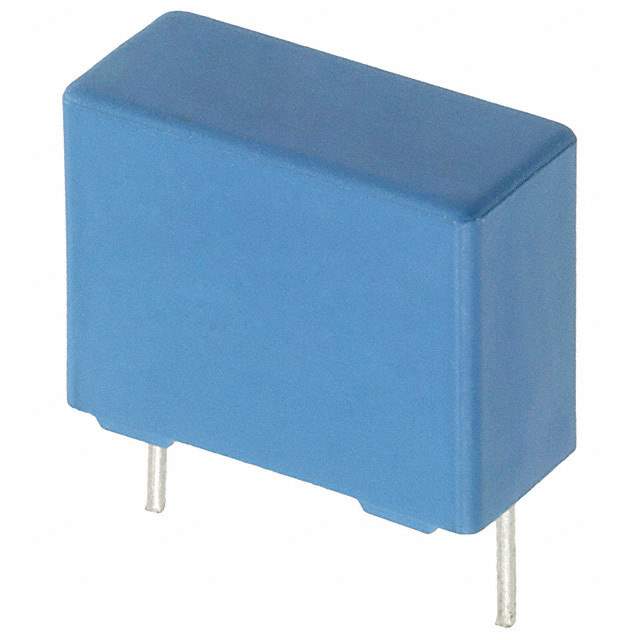

B32022A3683M000 Real Image
Same model may have multiple batches, images only for reference.

B32022A3683M000

Part No B32022A3683M000
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 0.068UF 20% 1.5KVDC RAD / 0.068 µF Film Capacitor 300V 1500V (1.5kV) Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr EPCOS - TDK Electronics
Series B3202* - Y2 Standard
Package Bulk
Capacitance 0.068 µF
Tolerance ±20%
Voltage Rating - AC 300V
Voltage Rating - DC 1500V (1.5kV)
Dielectric Material Polypropylene (PP) , Metallized
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.709" L x 0.354" W (18.00mm x 9.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications EMI, RFI Suppression
Ratings Y2
Standard Package 500
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0020
Win Source Part Number 1339976-B32022A3683M000
Ultra Librarian 3D Model Ultra Librarian B32022A3683M000 CAD Model

Description

The B32022A3683M000 is a Y2 standard film capacitor from EPCOS - TDK Electronics.

  • Capacitance: 0.068 µF
  • Tolerance: ±20%
  • Voltage Rating (AC): 300V
  • Voltage Rating (DC): 1500V (1.5kV)
  • Termination: PC pins
  • Package: Bulk
  • Size/Dimension: 0.709" L x 0.354" W (18.00mm x 9.00mm)
  • Height Seated (Max): 0.689" (17.50mm)
  • Application: EMI and RFI suppression
  • Standard Package: 500
  • Lead Spacing: 0.591" (15.00mm)
  • Dielectric Material: Polypropylene (PP) and metallized
  • Mounting Type: Through-hole
  • Package/Case: Radial
  • Operating Temperature: -40°C ~ 110°C
  • ECCN: EAR99
  • MSL Level: Not applicable
  • REACH Status: REACH Unaffected
  • HTSUS: 8532.25.0020
