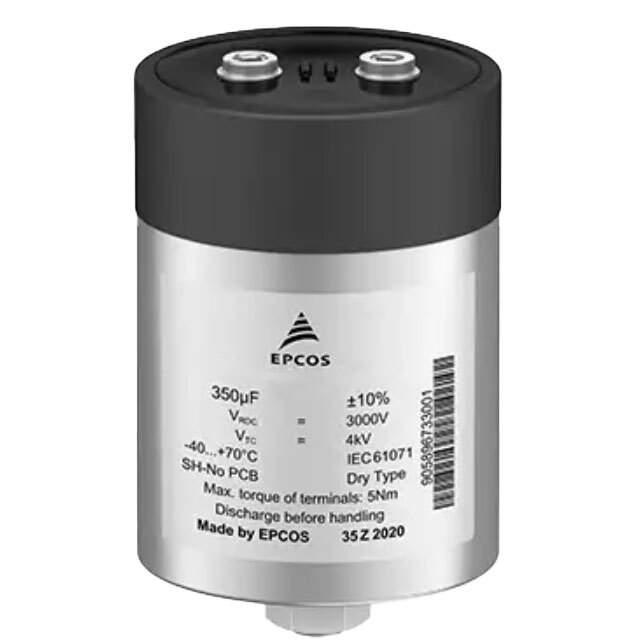

B25690C2367K803 Real Image
Same model may have multiple batches, images only for reference.

B25690C2367K803

Part No B25690C2367K803
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description 360UF +-10% 2800V PEC MKP DC / 360 µF Film Capacitor 2800V (2.8kV) Radial, Can
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr EPCOS - TDK Electronics
Series B25690
Package Bulk
Capacitance 360 µF
Tolerance ±10%
Voltage Rating - DC 2800V (2.8kV)
ESR (Equivalent Series Resistance) 1.3 mOhms
Temperature Range - Operating -40°C ~ 75°C
Mounting Type Chassis Mount
Package / Case Radial, Can
Size / Dimension 5.354" Dia (136.00mm)
Height - Seated (Max) 13.583" (345.00mm)
Termination Threaded, Female
Lead Spacing 1.969" (50.00mm)
Applications General Purpose
Standard Package 4
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0080
Win Source Part Number 1339951-B25690C2367K803
Ultra Librarian 3D Model Ultra Librarian B25690C2367K803 CAD Model

Description

The B25690C2367K803 is a threaded, female capacitor from the B25690 series by EPCOS.

  • Capacitance: 360 µF
  • Tolerance: ±10%
  • Voltage Rating: 2800V (2.8kV) DC
  • Diameter: 5.354" (136.00mm)
  • Height: 13.583" (345.00mm)
  • Lead Spacing: 50.00mm
  • ESR: 1.3 mOhms
  • Application: General Purpose
  • Mounting Type: Chassis Mount
  • Package: Radial, Can
  • Temperature Range: -40°C to 75°C
  • AEC-Q200: Rated
  • Packaging: Bulk
  • Standard Package: 4
