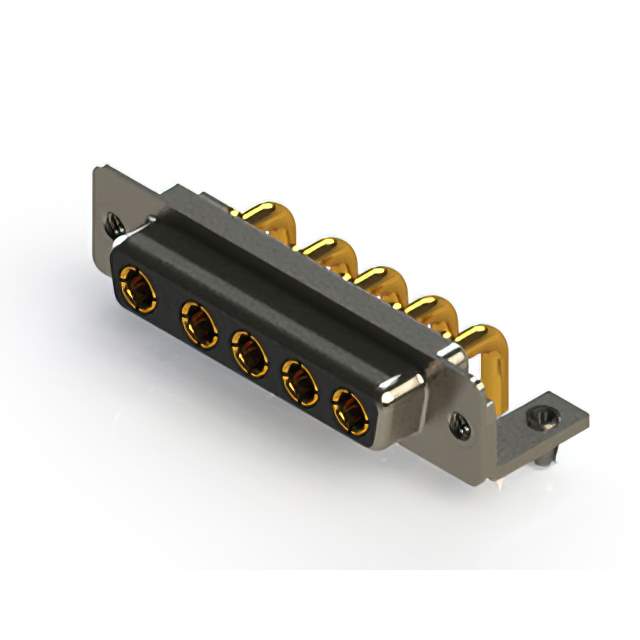

630-5W5-240-2N3 Real Image
Same model may have multiple batches, images only for reference.

630-5W5-240-2N3

Part No 630-5W5-240-2N3
Manufacturer EDAC Inc.
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 5POS R/A SLDR / 5 (Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
Datasheet
630-5W5-240-2N3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr EDAC Inc.
Series 630-C
Package Tray
Connector Style D-Sub, Combo
Connector Type Receptacle, Female Sockets
Number of Positions 5 (Power)
Number of Rows 1
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 3 (DB, B) - 5W5
Contact Type Power
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 20A
Backset Spacing 0.520" (13.20mm)
Features Board Lock, Mounting Brackets
Voltage Rating 125V
Color Black
Dielectric Material Polyester Thermoplastic
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
Base Product Number 630-5W5
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1341505-630-5W5-240-2N3
Ultra Librarian 3D Model Ultra Librarian 630-5W5-240-2N3 CAD Model

Description

This D-Sub connector assembly is a part of the 630-C series and has 5 power positions.

  • Connector Type: Receptacle, Female Socket
  • Board Lock: Yes
  • Mounting Brackets: Yes
  • Contact Type: Power
  • Termination Type: Solder
  • Contact Finish: Gold with a flash finish thickness
  • Connector Style: D-Sub, Combo
  • Voltage Rating: 125V
  • Shell Material: Steel with a nickel plating
  • Dielectric Material: Polyester Thermoplastic
  • Mounting Type: Through Hole with a right angle layout
  • Operating Temperature: -55°C to 125°C
  • Backset Spacing: 0.520” (13.20mm)
  • Current Rating: 20A
  • REACH: Unaffected
  • ECCN: EAR99
