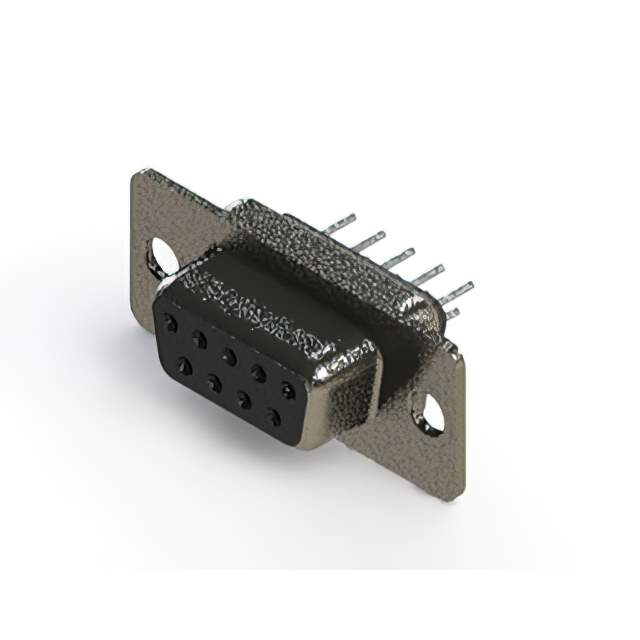

Part No 628-009-220-041
Manufacturer EDAC Inc.
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 9P PNL MNT SLDR / 9 Position D-Sub Receptacle, Female Sockets Connector
Datasheet
628-009-220-041 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr EDAC Inc.
Series 628 (Metal)
Package Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal and Power
Flange Feature Board Side (4-40)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A per Contact
Features Shielded
Color Black
Dielectric Material Polyester Thermoplastic
Contact Material Brass
Temperature Range - Operating -55°C ~ 85°C
Base Product Number 628-009
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1339514-628-009-220-041
Ultra Librarian 3D Model Ultra Librarian 628-009-220-041 CAD Model

Description

The 1339514-628-009-220-041 is a D-sub connector assembly from EDAC Inc.

  • Shell Size: 1 (DE, E)
  • Connector Layout: 2 rows
  • Positions: 9
  • Contact Type: signal and power
  • Current Rating: 3A per contact
  • Package: tray
  • Standard Package: 25
  • Temperature Range: -55°C to 85°C
