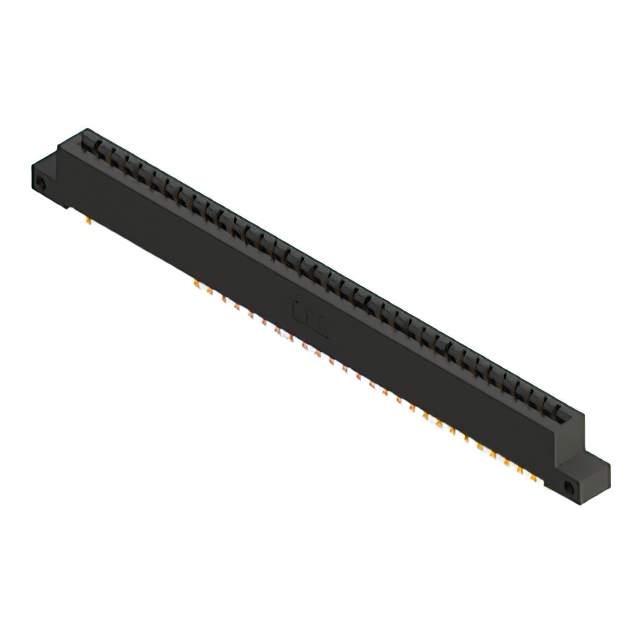

387-070-555-212 Real Image
Same model may have multiple batches, images only for reference.

387-070-555-212

Part No 387-070-555-212
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 70POS 0.156 / 70 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
Datasheet
387-070-555-212 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 387
Package Box
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 35
Number of Positions 70
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 2
Pitch 0.156" (3.96mm)
Read Out Dual
Features Card Extender
Mounting Type Board Edge, Straddle Mount
Termination Solder Eyelet(s)
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Cantilever
Color Black
Flange Feature Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 2
Base Product Number 387-070
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-387-070-555-212
Standard Package 25
Win Source Part Number 1041271-387-070-555-212
Ultra Librarian 3D Model Ultra Librarian 387-070-555-212 CAD Model

Description

The 1041271-387-070-555-212 is a female card edge connector from EDAC Inc. that features a cantilever contact type, gold contact finish, and copper alloy contact material. It has a dual readout and can be mounted on the board edge or straddle mount.

  • Contact Type: Cantilever
  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Readout: Dual
  • Mounting Options: Board edge or straddle mount
  • Temperature Range: -40°C to 105°C
  • REACH: Unaffected
  • Series: 387
  • Positions: 70
  • Pitch: 0.156 inches (3.96mm)
  • Package: 25 connectors
  • Standard Package: Standard
  • Flange Feature: Flush mount, side opening, unthreaded, 0.128-inch (3.25mm) diameter
  • Card Thickness: 0.054 inches to 0.070 inches (1.37mm to 1.78mm)
