Same model may have multiple batches, images only for reference.

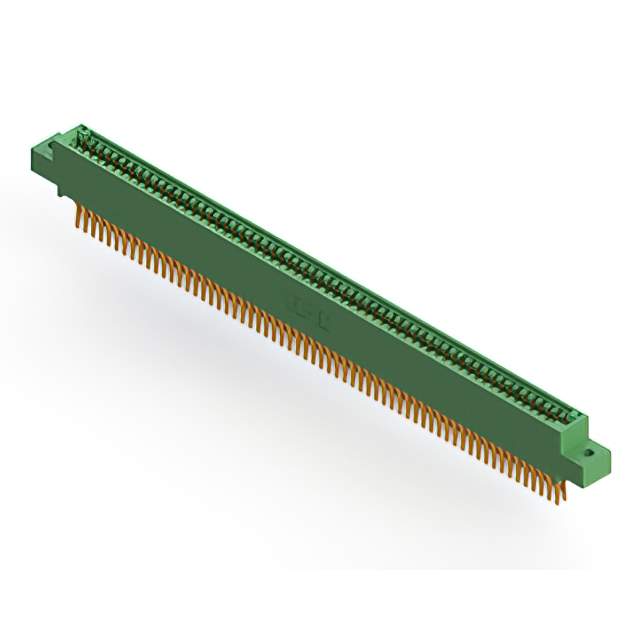

345-124-560-502 Real Image
Same model may have multiple batches, images only for reference.

345-124-560-502

Part No 345-124-560-502
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FML 124POS 0.100 / 124 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
Datasheet
345-124-560-502 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 345
Package Box
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 62
Number of Positions 124
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 2
Pitch 0.100" (2.54mm)
Read Out Dual
Features Card Extender
Mounting Type Board Edge, Straddle Mount
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Cantilever
Color Green
Flange Feature Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 2
Base Product Number 345-124
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-345-124-560-502
Standard Package 25
Win Source Part Number 1191730-345-124-560-502
Ultra Librarian 3D Model Ultra Librarian 345-124-560-502 CAD Model

Description

This female card edge connector with a pitch of 0.100" (2.54mm) is a cantilever type connector with a dual edge readout.

  • Pitch: 0.100" (2.54mm)
  • Connector Type: Card Edge, Cantilever
  • Readout: Dual Edge
  • Feature: Card Extender
  • Insulation Material: Polyester Thermoplastic
  • Insulation Color: Green
  • Positions: 124
  • Positions/Bay/Row: 62
  • Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0µin (0.25µm)
  • Contact Material: Copper Alloy
  • Temperature Range: -40°C ~ 105°C
  • Mounting: Board Edge or Straddle Mount
  • Standard Package: 25
  • Series: 345
  • ECCN: EAR99
  • REACH: Unaffected
