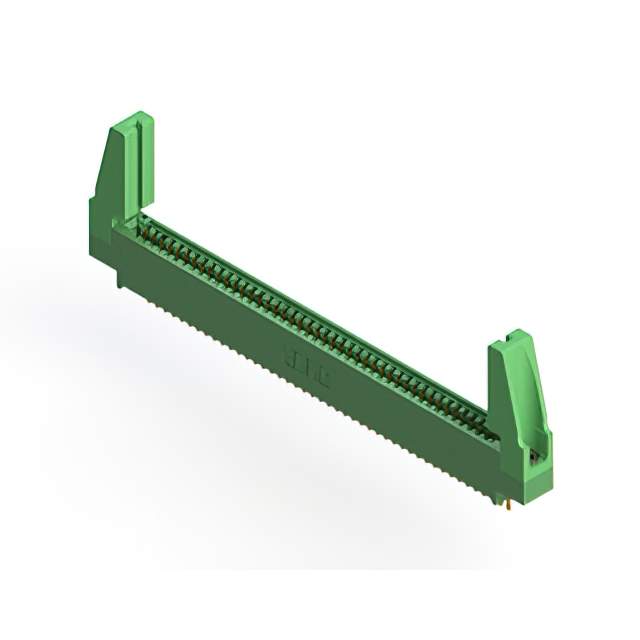

345-045-500-688 Real Image
Same model may have multiple batches, images only for reference.

345-045-500-688

Part No 345-045-500-688
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description 345 SERIES (.100" (2.54MM) CONTA / 45 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
Datasheet
345-045-500-688 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 345
Package Box
Card Type Non Specified - Single Edge
Gender Female
Number of Positions/Bay/Row 45
Number of Positions 45
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 1
Pitch 0.100" (2.54mm)
Read Out Single
Features Card Guides
Mounting Type Through Hole
Termination Solder Eyelet(s)
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Cantilever
Color Green
Flange Feature Top Mount Opening, Threaded Insert, 4-40
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 1
Base Product Number 345-045
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-345-045-500-688
Standard Package 25
Win Source Part Number 1030937-345-045-500-688
Ultra Librarian 3D Model Ultra Librarian 345-045-500-688 CAD Model

Description

The 1030937-345-045-500-688 is a card edge connector from EDAC Inc. This connector features 45 positions with a pitch of 0.100" (2.54mm).

  • Positions: 45
  • Pitch: 0.100" (2.54mm)
  • Color: Green
  • Card Guides: Yes
  • Contact Type: Cantilever
  • Termination: Solder Eyelet(s)
  • Contact Finish: Gold, 10.0µin (0.25µm)
  • Row Configuration: Single
  • Mounting Type: Through-Hole
  • Operating Temperature Range: -40°C to 105°C
  • Manufacturer: EDAC Inc.
