Same model may have multiple batches, images only for reference.

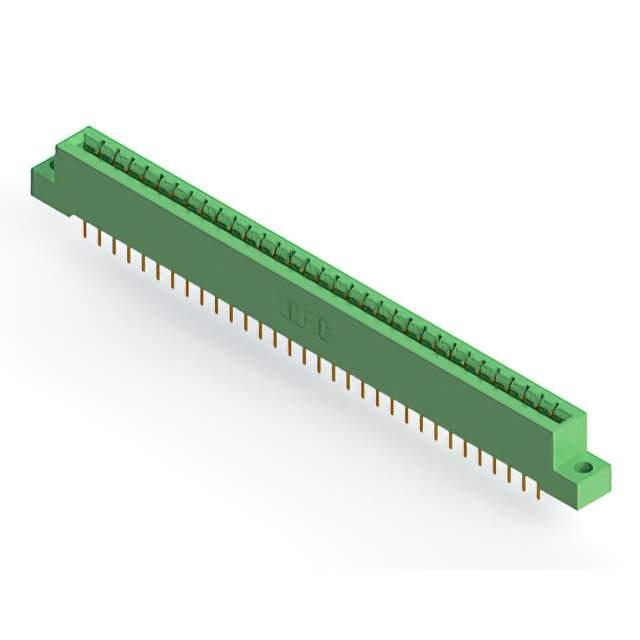

333-064-520-204 Real Image
Same model may have multiple batches, images only for reference.

333-064-520-204

Part No 333-064-520-204
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description 333 SERIES (.156" (3.96MM) CONTA / 64 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
Datasheet
333-064-520-204 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 333
Package Box
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 32
Number of Positions 64
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 2
Pitch 0.156" (3.96mm)
Read Out Dual
Mounting Type Through Hole
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Cantilever
Color Green
Flange Feature Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 2
Base Product Number 333-064
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-333-064-520-204
Standard Package 25
Win Source Part Number 1038116-333-064-520-204
Ultra Librarian 3D Model Ultra Librarian 333-064-520-204 CAD Model

Description

The EDAC Inc. 333 series card edge connector is a dual-edge non-specified component with a pitch of 0.156 inches and 64 positions.

  • Connector: Female
  • Contact Type: Cantilever
  • Rows: Two
  • Termination: Solder
  • Contact Finish: Gold
  • Thickness: 10.0μin (0.25μm)
  • Contact Material: Copper Alloy
  • Insulation Material: Polyester Thermoplastic
  • Color: Green
  • Card Thickness: 0.054 inches to 0.070 inches
  • Flange Feature: Flush Mount flange feature with a top opening and unthreaded with a diameter of 0.156 inches
  • Temperature Range: -40°C to 105°C
  • ECCN: EAR99
  • REACH: Unaffected
