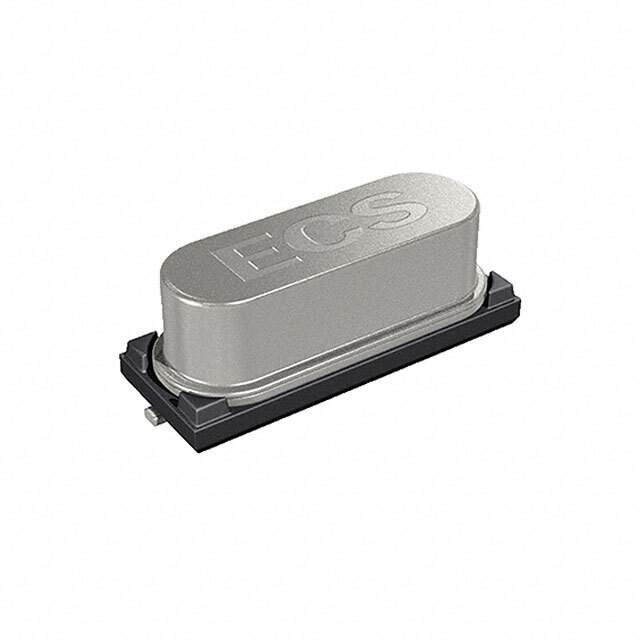

ECS-49-20-5PX-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-49-20-5PX-TR

Part No ECS-49-20-5PX-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description CRYSTAL 4.9152MHZ 20PF SMD / 4.9152 MHz ±30ppm Crystal 20pF 150 Ohms HC-49/US
Datasheet
ECS-49-20-5PX-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Manufacturer ECS Inc.
Packaging Reel - TR
Type MHz Crystal
Frequency 4.9152 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 150 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 70°C
Mounting Surface Mount
Case / Package HC-49/US
Size / Dimension 0.449" L x 0.189" W (11.40mm x 4.80mm)
Height - Seated (Max) 0.169" (4.30mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0030
Other Part Number Q3123476A,ECS49205PXTR,XC1240CT,XC1240TR,XC1240DKR
Standard Package 1,000
Win Source Part Number 1328328-ECS-49-20-5PX-TR
Ultra Librarian 3D Model Ultra Librarian ECS-49-20-5PX-TR CAD Model

Description

The ECS Inc. 1328328-ECS-49-20-5PX-TR is a surface mount MHz crystal from ECS Inc.

  • Frequency: 4.9152 MHz
  • Frequency Stability: ±50ppm
  • ESR: 150 Ohms
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 20pF
  • Operating Mode: Fundamental
  • Temperature Range: -10°C to 70°C
  • Package: HC-49/US
  • ROHS3 Compliant: Yes
  • REACH Affected: No
