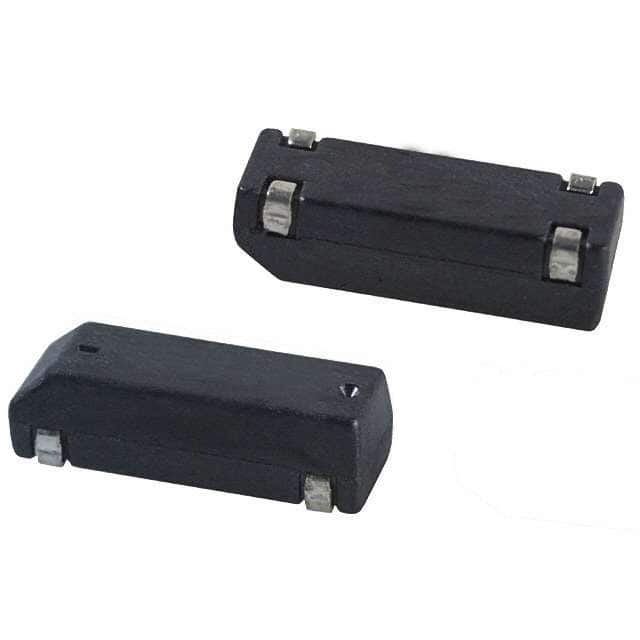

Same model may have multiple batches, images only for reference.
ECS-36-S-7SX-TR ECS Inc.
Same model may have multiple batches, images only for reference.

ECS-36-S-7SX-TR

Part No ECS-36-S-7SX-TR
Manufacturer ECS Inc.
Catalog Oscillators
Datasheet
ECS-36-S-7SX-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr ECS Inc.
Series ECX-3SX
Package Tape & Reel
Product Status Not For New Designs
Type MHz Crystal
Frequency 3.6864 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance Series
ESR (Equivalent Series Resistance) 200 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 70°C
Mounting SMD (SMT)
Package / Case 4-SOJ, 9.40mm pitch
Dimension 0.492" L x 0.181" W (12.50mm x 4.60mm)
Height - Seated (Max) 0.146" (3.70mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0030
Win Source Part Number 1315938-ECS-36-S-7SX-TR
Ultra Librarian 3D Model Ultra Librarian ECS-36-S-7SX-TR CAD Model

Description

The ECS-36-S-7SX-TR is a MHz crystal that is part of the ECX-3SX series.

  • Package Type: Tape and Reel
  • Mounting Type: Surface Mount
  • Frequency: 3.6864 MHz
  • ESR: 200 Ohms
  • Operating Temperature: -10°C to 70°C
  • Frequency Tolerance: ±30ppm
  • Design Status: Not For New Designs
  • Supply & Demand Status: Limited
  • Manufacturer: ECS Inc.
  • ECCN: EAR99
