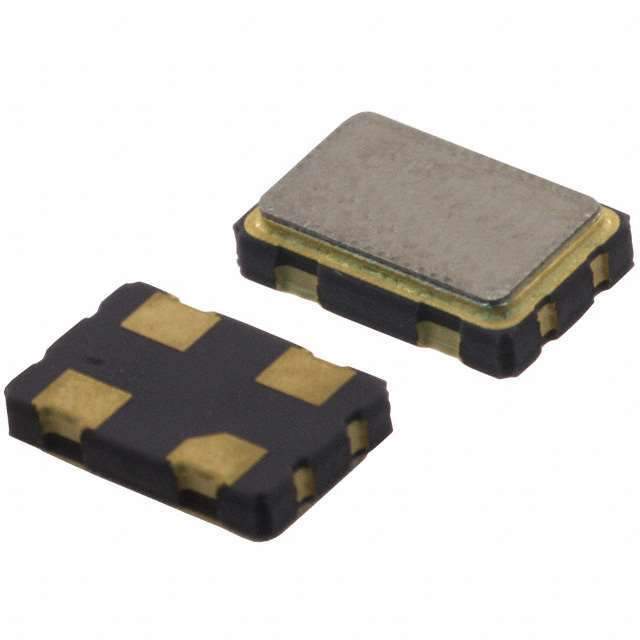

Same model may have multiple batches, images only for reference.

ECS-2532HS-160-3-G

Name: ECS-2532HS-160-3-G
Brand: ECS Inc.
SKU: 1340006
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ECS-2532HS-160-3-G
Manufacturer	ECS Inc.
Catalog	Oscillators
Description	XTAL OSC XO 16.0000MHZ CMOS SMD / 16 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Datasheet	ECS-2532HS-160-3-G Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Crystals, Oscillators, Resonators - Oscillators
Mfr	ECS Inc.
Series	ECS-2532HS
Package	Tape & Reel
Base Resonator	Crystal
Type	XO (Standard)
Frequency	16 MHz
Function	Enable/Disable
Output	CMOS
Voltage - Supply	3.3V
Frequency Stability	±10ppm
Temperature Range - Operating	-40°C ~ 85°C
Current - Supply (Max)	10mA
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead
Size / Dimension	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)	0.043" (1.10mm)
Current - Supply (Disable) (Max)	10µA
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	1340006-ECS-2532HS-160-3-G
Ultra Librarian 3D Model	Ultra Librarian ECS-2532HS-160-3-G CAD Model

Alternative Products

Description

The ECS Inc. 1340006-ECS-2532HS-160-3-G is a surface mount XO standard oscillator that belongs to the ECS-2532HS series.

Series: ECS-2532HS
Size / Dimension: 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max): 0.043" (1.10mm)
Frequency: 16 MHz
Frequency Stability: ±10ppm
Output: CMOS
Current - Supply (Max): 10mA
Voltage - Supply: 3.3V
Mode: Fundamental
Packaging: Tape & Reel (TR)
Operating Temperature: -40°C ~ 85°C
REACH Status: REACH Unaffected
ECCN: EAR99
