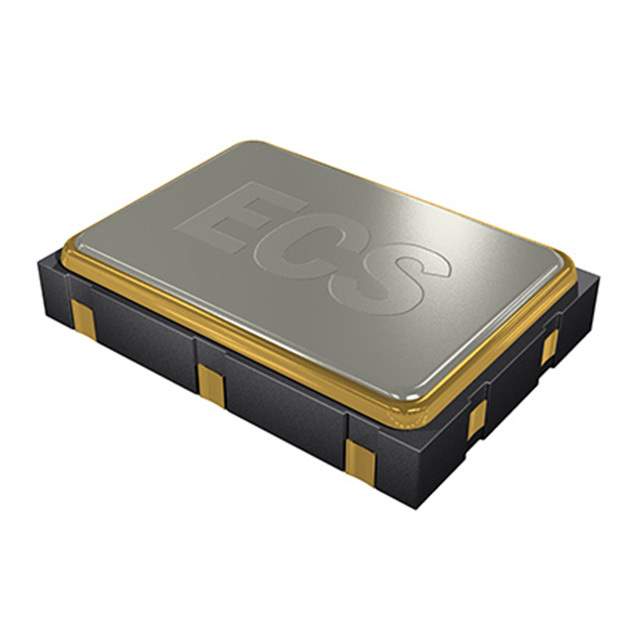

ECS-2520S33-120-FN-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-2520S33-120-FN-TR

Part No ECS-2520S33-120-FN-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description XTAL OSC XO 12.0000MHZ HCMOS SMD / 12 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Datasheet
ECS-2520S33-120-FN-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr ECS Inc.
Series ECS-2520S
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 12 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 3.3V
Frequency Stability ±10ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 7mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.039" (1.00mm)
Current - Supply (Disable) (Max) 10µA
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1339112-ECS-2520S33-120-FN-TR
Ultra Librarian 3D Model Ultra Librarian ECS-2520S33-120-FN-TR CAD Model

Description

The ECS-2520S series XO is a high-performance crystal oscillator with a frequency of 12 MHz and a frequency stability of ±10ppm.

  • Series: ECS-2520S
  • Type: XO
  • Frequency: 12 MHz
  • Frequency Stability: ±10ppm
  • Output: HCMOS
  • Function: enable/disable
  • Voltage Supply: 3.3V
  • Supply Current (Max): 7mA
  • Mounting: surface-mounted
  • Package Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height: 0.039" (1.00mm)
  • Packaging: tape and reel
  • Standard Package: 1,000 units
