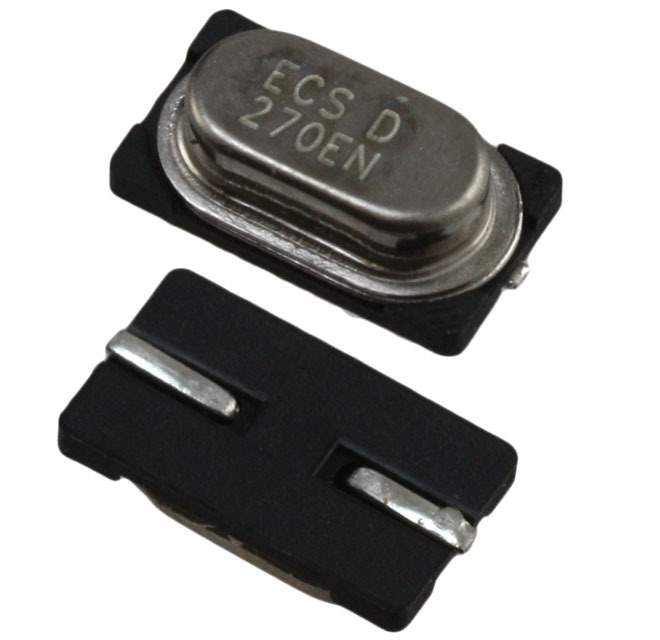

ECS-250-20-3X-EN-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-250-20-3X-EN-TR

Part No ECS-250-20-3X-EN-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description CRYSTAL 25.0000MHZ 20PF SMD / 25 MHz ±30ppm Crystal 20pF 50 Ohms HC-49/US
Datasheet
ECS-250-20-3X-EN-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Manufacturer ECS Inc.
Packaging Reel - TR
Type MHz Crystal
Frequency 25 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Surface Mount
Case / Package HC-49/US
Size / Dimension 0.276" L x 0.161" W (7.00mm x 4.10mm)
Height - Seated (Max) 0.091" (2.30mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Other Part Number ECS-25020-3XEN-TR,ECS-250-20-3XEN-TR,XC1798DKR,ECS250203XENTR,XC1798TR,XC1798CT
Standard Package 3,000
Win Source Part Number 1328407-ECS-250-20-3X-EN-TR
Ultra Librarian 3D Model Ultra Librarian ECS-250-20-3X-EN-TR CAD Model

Description

The ECS Inc. 1328407-ECS-250-20-3X-EN-TR is a surface mount MHz crystal that is ideal for use in various electronic devices.

  • Frequency: 25 MHz
  • ESR (Equivalent Series Resistance): 50 Ohms
  • Frequency Stability: ±50ppm
  • Load Capacitance: 20pF
  • Operating Mode: Fundamental
  • Temperature Range: -40°C to 85°C
  • Case/Package: HC-49/US
  • ROHS3 Compliant: Yes
  • REACH: Not Affected
  • Standard Package: 3,000 Units on a Reel
