Same model may have multiple batches, images only for reference.

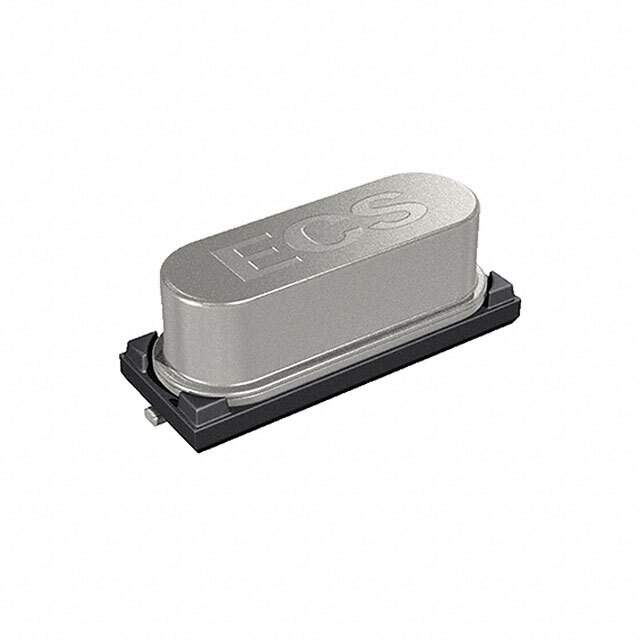

ECS-200-20-5PXDN-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-200-20-5PXDN-TR

Part No ECS-200-20-5PXDN-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description CRYSTAL 20.0000MHZ 20PF SMD / 20 MHz ±30ppm Crystal 20pF 30 Ohms HC-49/US
Datasheet
ECS-200-20-5PXDN-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Manufacturer ECS Inc.
Packaging Reel - TR
Type MHz Crystal
Frequency 20 MHz
Frequency Stability ±100ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 30 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Surface Mount
Case / Package HC-49/US
Size / Dimension 0.449" L x 0.189" W (11.40mm x 4.80mm)
Height - Seated (Max) 0.169" (4.30mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Other Part Number Q5907193,ECS200205PXDNTR,XC1302DKR,XC1302TR,XC1302CT
Standard Package 1,000
Win Source Part Number 1328339-ECS-200-20-5PXDN-TR
Ultra Librarian 3D Model Ultra Librarian ECS-200-20-5PXDN-TR CAD Model

Description

The ECS-200-20-5PXDN-TR is a surface mount MHz crystal manufactured by ECS Inc.

  • Frequency: 20 MHz
  • Frequency Tolerance: ±30ppm
  • Frequency Stability: ±100ppm
