Same model may have multiple batches, images only for reference.

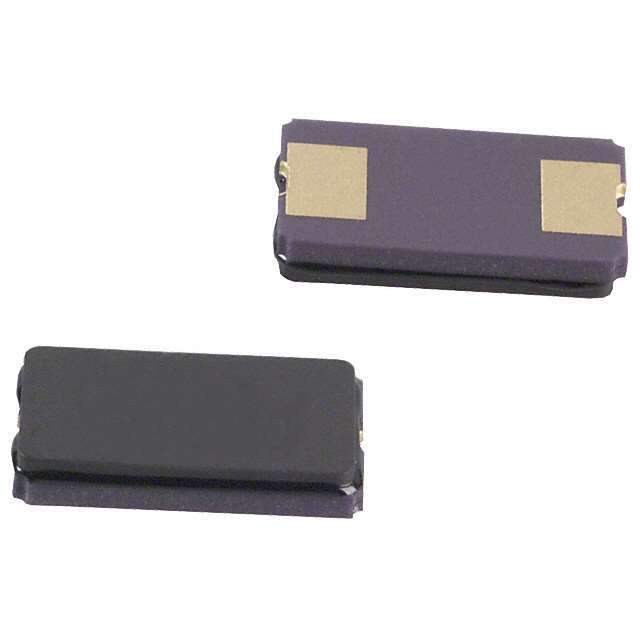

ECS-200-20-23A-EN-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-200-20-23A-EN-TR

Part No ECS-200-20-23A-EN-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description CRYSTAL 20.0000MHZ 20PF SMD / 20 MHz ±30ppm Crystal 20pF 30 Ohms 2-SMD, No Lead
Datasheet
ECS-200-20-23A-EN-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Manufacturer ECS Inc.
Packaging Reel - TR
Type MHz Crystal
Frequency 20 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 30 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Surface Mount
Case / Package 2-SMD, No Lead
Size / Dimension 0.236" L x 0.138" W (6.00mm x 3.50mm)
Height - Seated (Max) 0.043" (1.10mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Other Part Number ECS-200-20-23A-N-TR,ECS2002023AENTR,XC988DKR,Q4493504,XC988CT,XC988TR
Standard Package 1,000
Win Source Part Number 1328354-ECS-200-20-23A-EN-TR
Ultra Librarian 3D Model Ultra Librarian ECS-200-20-23A-EN-TR CAD Model

Description

The ECS Inc. crystal is a high-quality crystal with a frequency of 20MHz from ECS Inc.

  • Frequency: 20MHz
  • Package: 2-SMD, no lead
  • Load Capacitance: 20pF
  • Operating Temperature Range: -40°C to 85°C
  • Packaging: Reel-TR
  • Mounting Type: Surface Mount
  • ESR: 30 Ohms
  • Frequency Stability: ±50ppm
  • REACH Unaffected: Yes
  • ROHS3 Compliant: Yes
