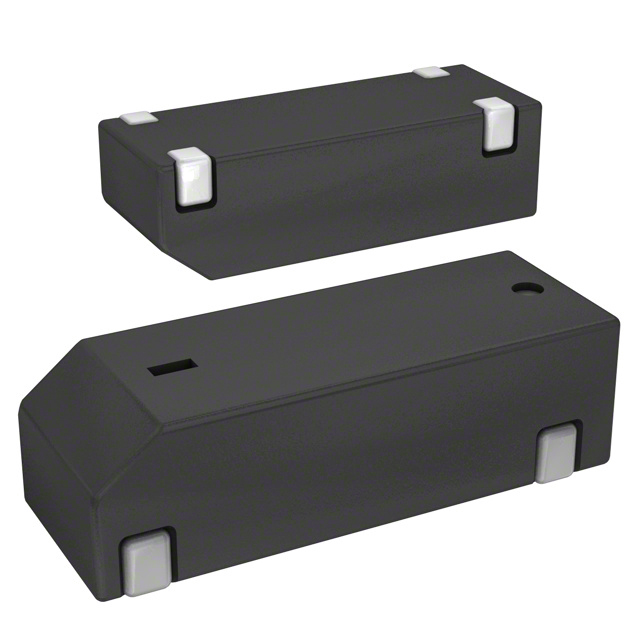

Same model may have multiple batches, images only for reference.
ECS-98.3-20-28AX-TR ECS Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ECS-98.3-20-28AX-TR

Part No ECS-98.3-20-28AX-TR
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 9.8304 MHZ 20PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type MHz Crystal
Frequency 9.8304 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 70°C
Mounting Type Surface Mount
Case / Package HC-49/US - 4 Lead
Size / Dimension 0.492" L x 0.191" W (12.50mm x 4.85mm)
Height - Seated (Max) 0.197\
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1529219-ECS-98.3-20-28AX-TR
Ultra Librarian 3D Model Ultra Librarian ECS-98.3-20-28AX-TR CAD Model
