Same model may have multiple batches, images only for reference.

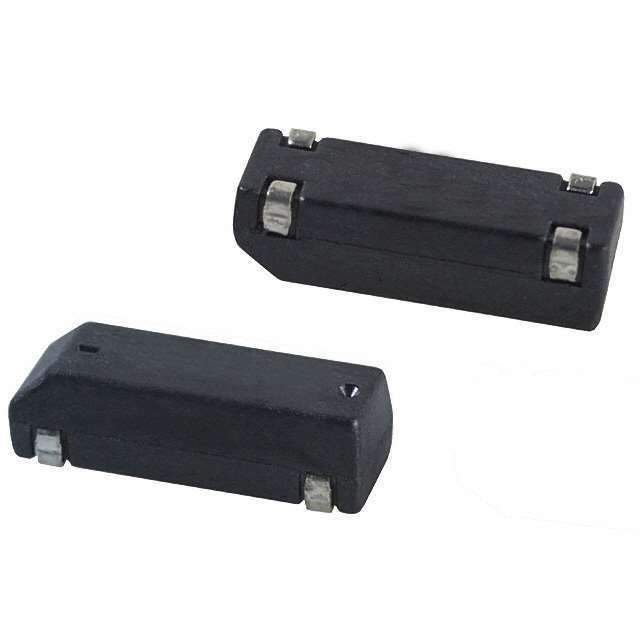

ECS-80-16-7SX-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-80-16-7SX-TR

Part No ECS-80-16-7SX-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description CRYSTAL 8.0000MHZ 16PF SMD
Datasheet
ECS-80-16-7SX-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals
Features ±30ppm Crystal 16pF 4-SOJ, 9.40mm pitch
Manufacturer ECS Inc.
Series ECX-3SX
Package Reel - TR
Part Status Not For New Designs
Operating Temperature Range -10°C ~ 70°C
Mounting Surface Mount
Package 4-SOJ, 9.40mm pitch
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Other Part Number XC1200CT, Q8885979, XC1200TR, ECS-080-16-7SX-TR, ECS80167SXTR, XC1200DKR
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 870085-ECS-80-16-7SX-TR
Ultra Librarian 3D Model Ultra Librarian ECS-80-16-7SX-TR CAD Model

Description

The ECX-3SX is a crystal oscillator that is manufactured by ECS Inc.

  • Manufacturer: ECS Inc.
  • Series: ECX-3SX
  • Operating Temperature: -10°C ~ 70°C
  • Features: ±30ppm Crystal 16pF 4-SOJ, 9.40mm pitch
  • Package: Reel - TR
  • Mounting: Surface Mount
  • Part Status: Not for New Designs
  • Package Type: 4-SOJ, 9.40mm pitch
  • Category: Crystals
  • Supply and Demand: Limited
  • Quantity per Package: 1000
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8541.60.0050
  • Other Part Numbers: XC1200CT, Q8885979, XC1200TR, ECS-080-16-7SX-TR, ECS80167SXTR, XC1200DKR
